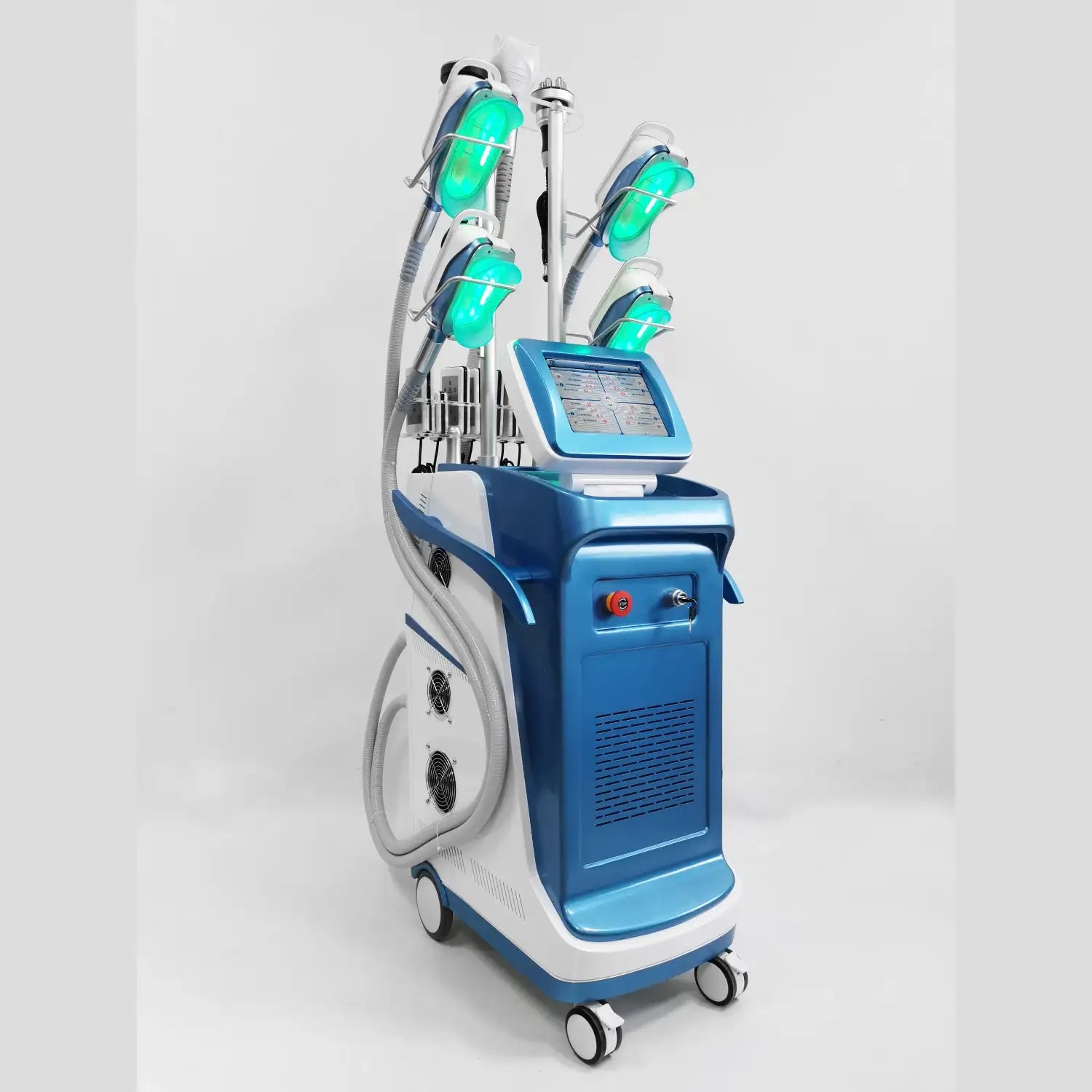

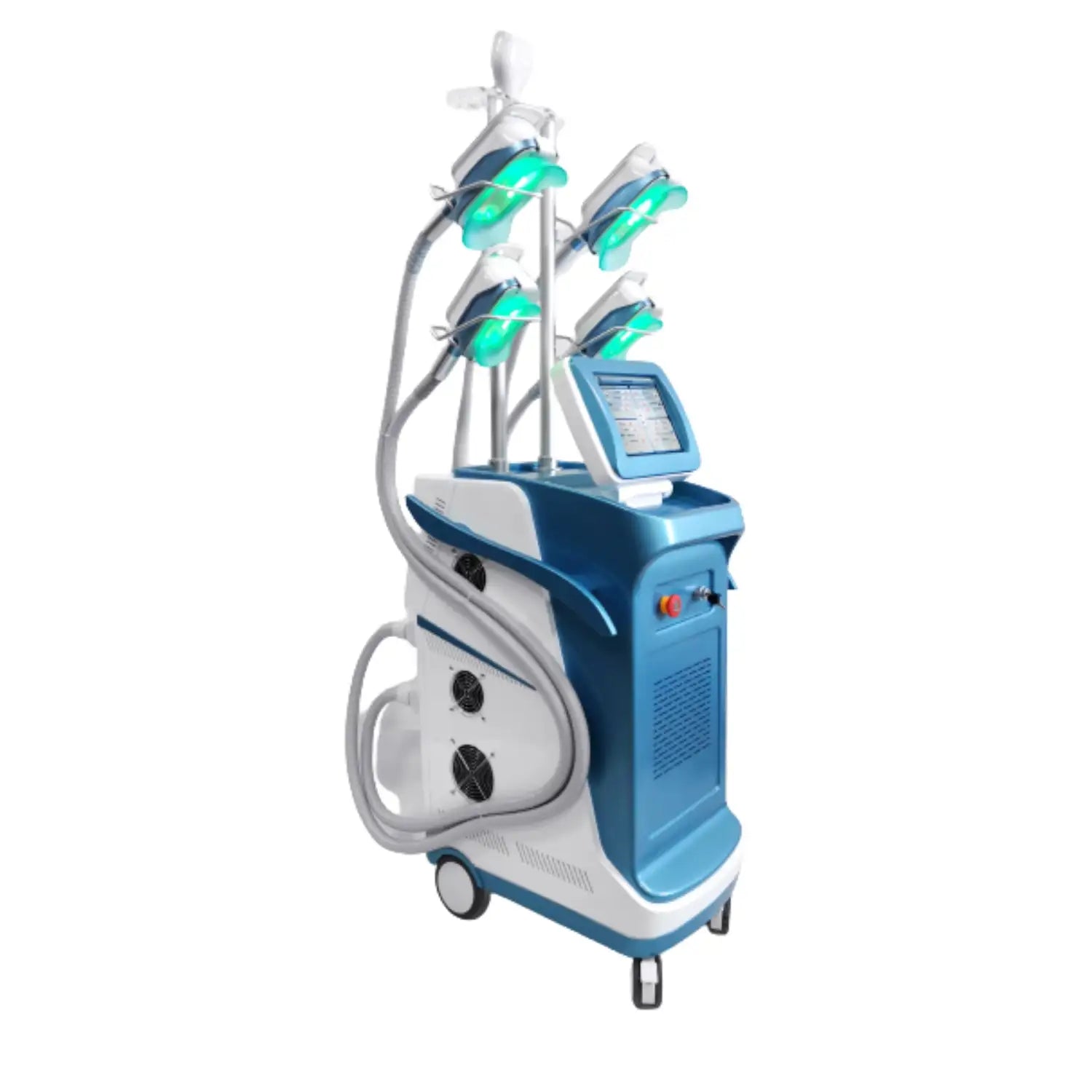

Professional CoolSculpting Machine with 360° Cryo Tech

Introduction

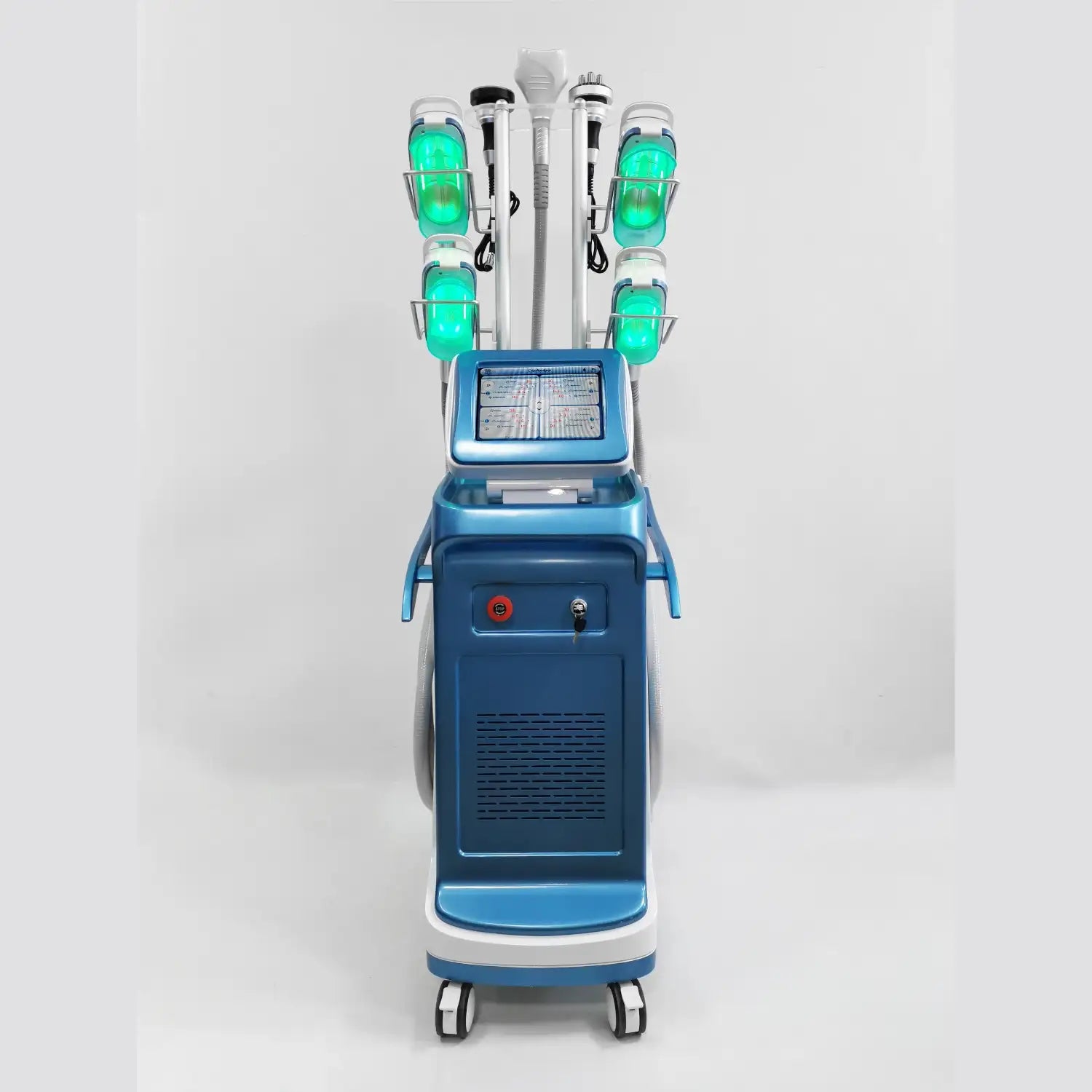

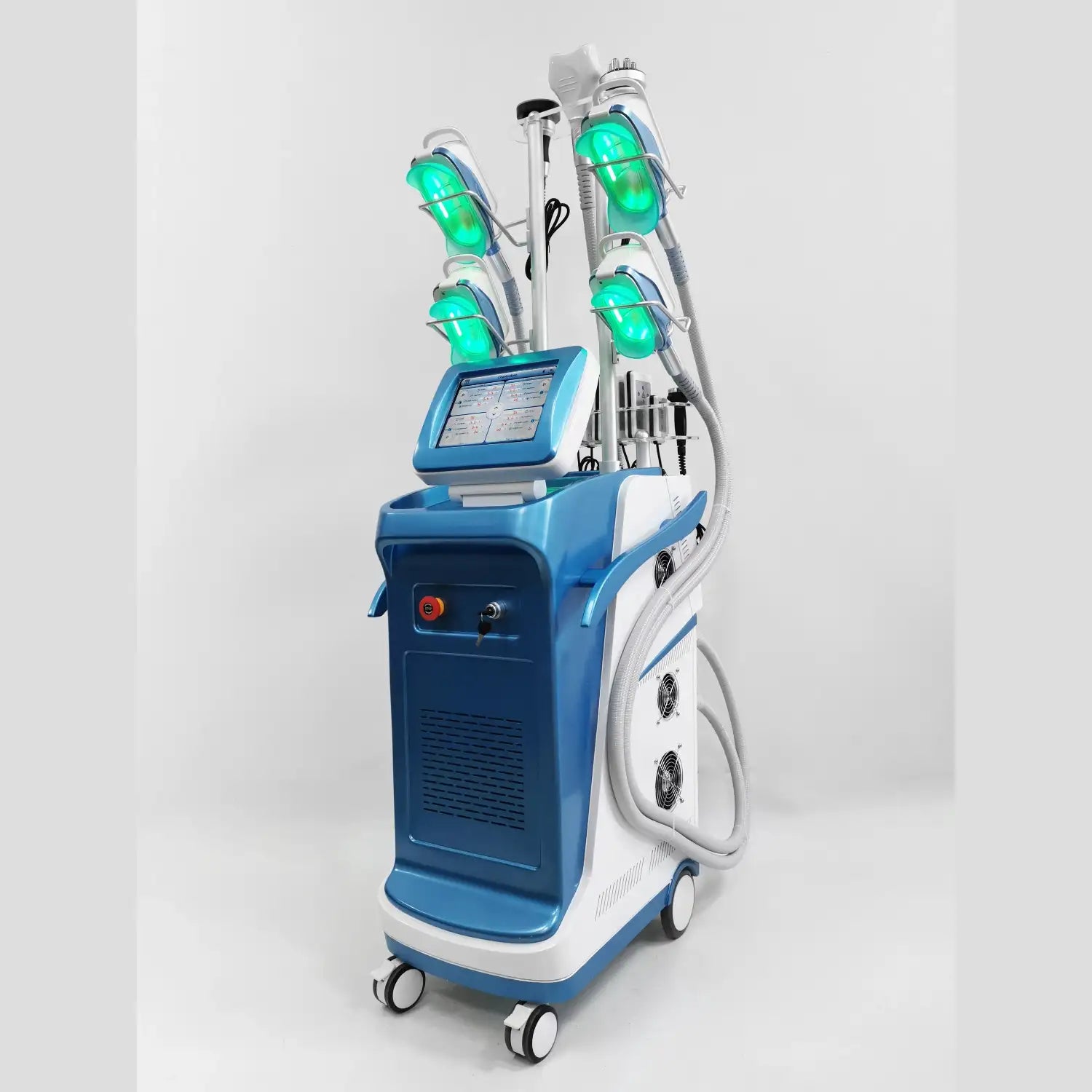

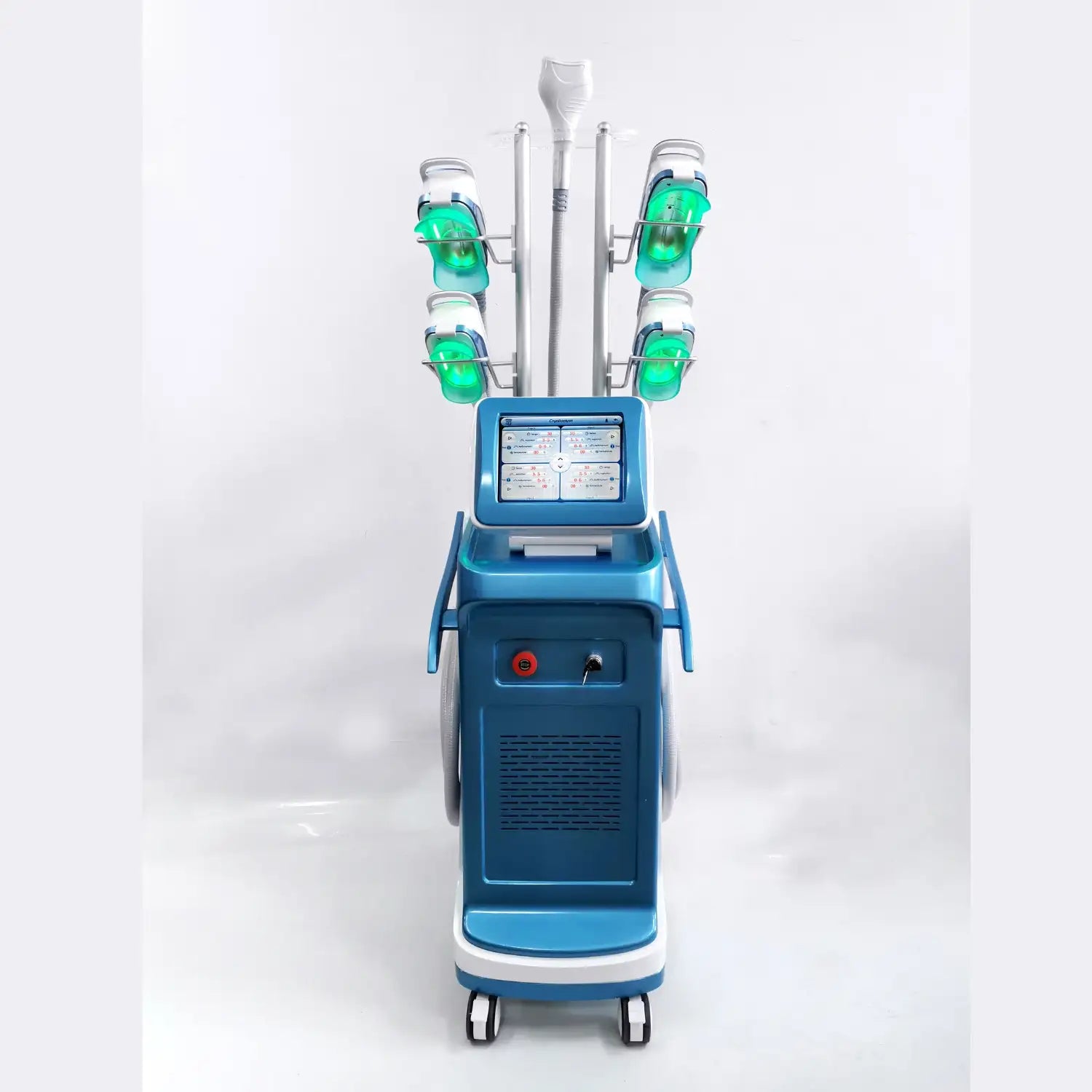

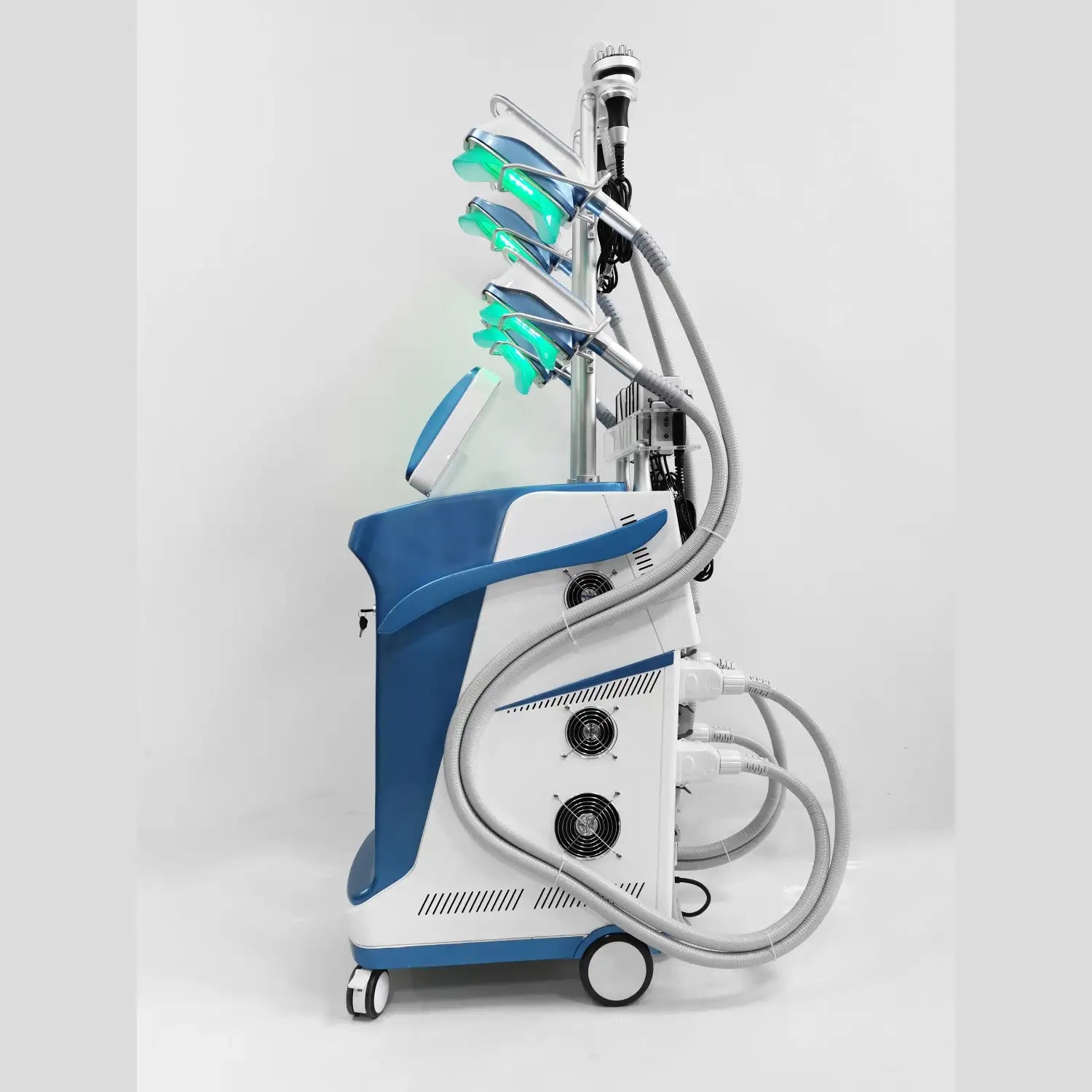

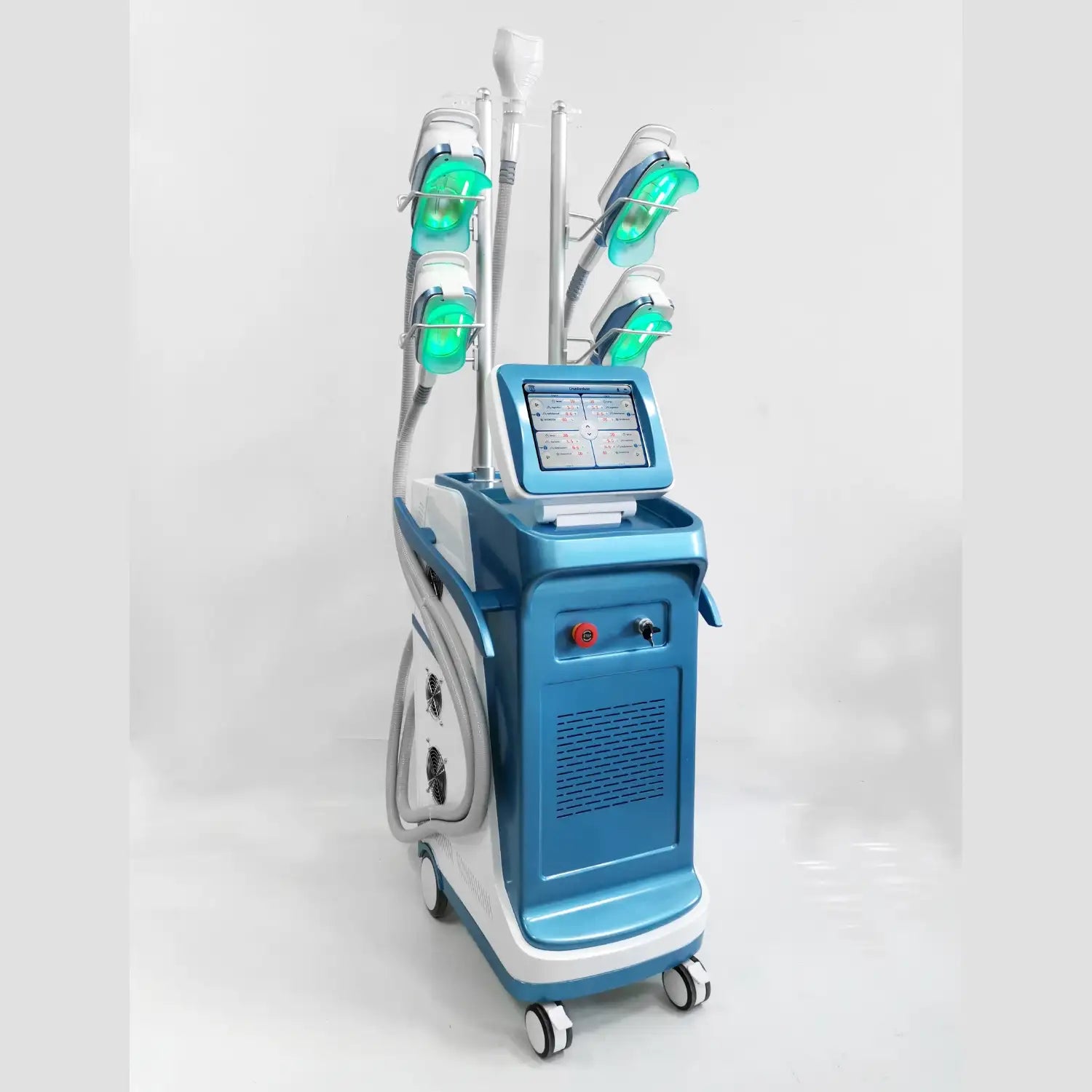

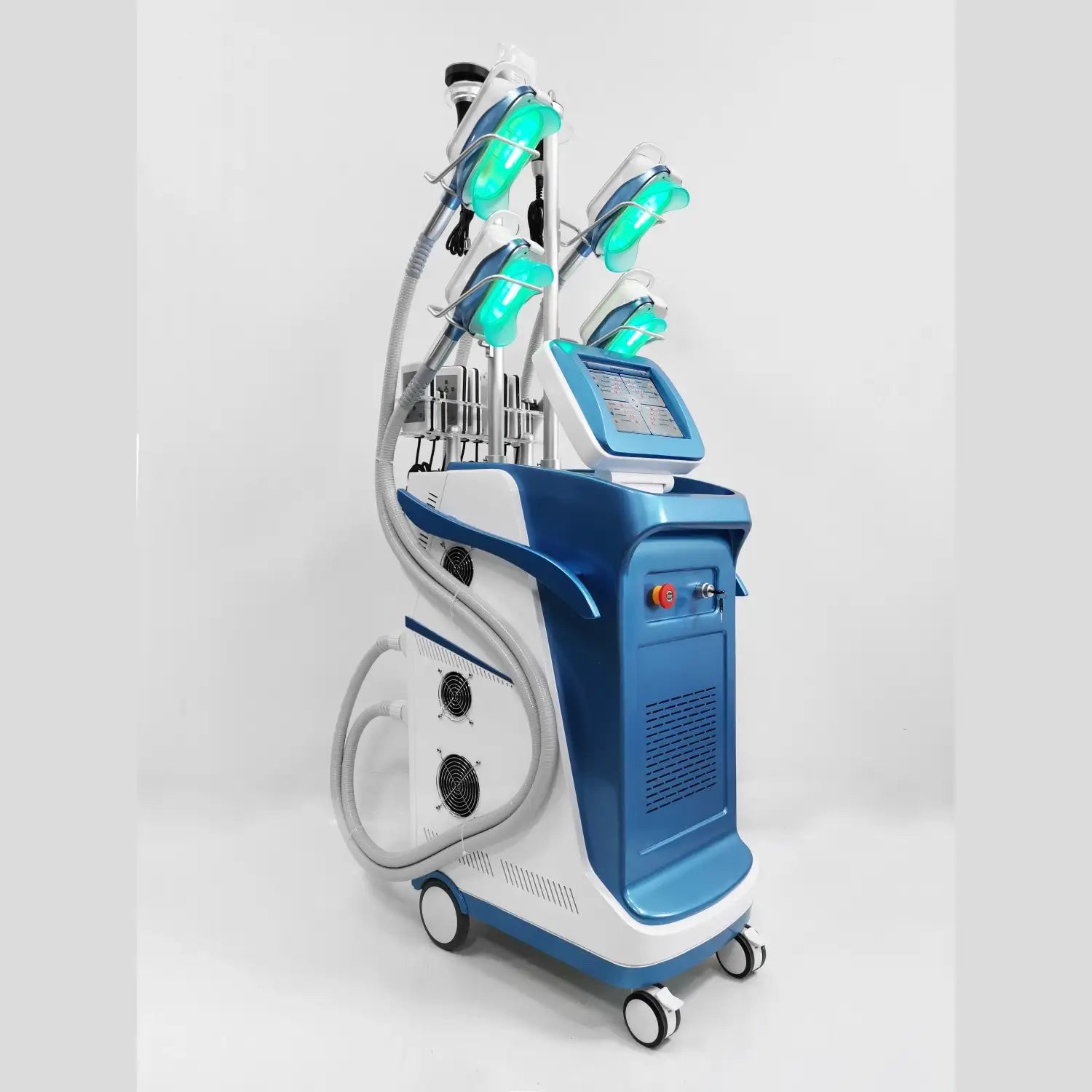

The Professional CoolSculpting Machine is a next-generation fat-freezing device. It targets stubborn fat through controlled cooling, offering non-surgical body contouring with high efficiency.

Using cryolipolysis, the machine selectively freezes fat cells. These cells are then naturally processed and eliminated by the body over several weeks, resulting in visible slimming effects.

Designed for clinical use, the system includes five ergonomic handles in various sizes. This makes it suitable for all body areas—abdomen, waist, back, thighs, arms, and under the chin.

The machine applies 360° full-contact cooling, which increases fat cell exposure and shortens treatment time. Pre-warming modes improve comfort and skin protection during each session.

Dual-channel technology allows two areas to be treated simultaneously. This enhances workflow and maximizes session efficiency in professional spa and clinic environments.

With RF, cavitation, and lipo laser integrated, the system not only reduces fat but also tightens skin and boosts circulation. It addresses both fat volume and skin texture issues effectively.

Equipped with intelligent temperature monitoring and frost-proof modules, the machine ensures safe, consistent performance. All features are controlled via a 10.4-inch touchscreen interface.

Whether your clients seek body slimming or localized contouring, this machine delivers FDA-compliant, proven technology with minimal side effects and no recovery time.

What is Professional CoolSculpting Machine

The Professional CoolSculpting Machine is a non-invasive cryolipolysis device. It uses 360° surround cooling to destroy fat cells without harming skin, muscle, or nerves.

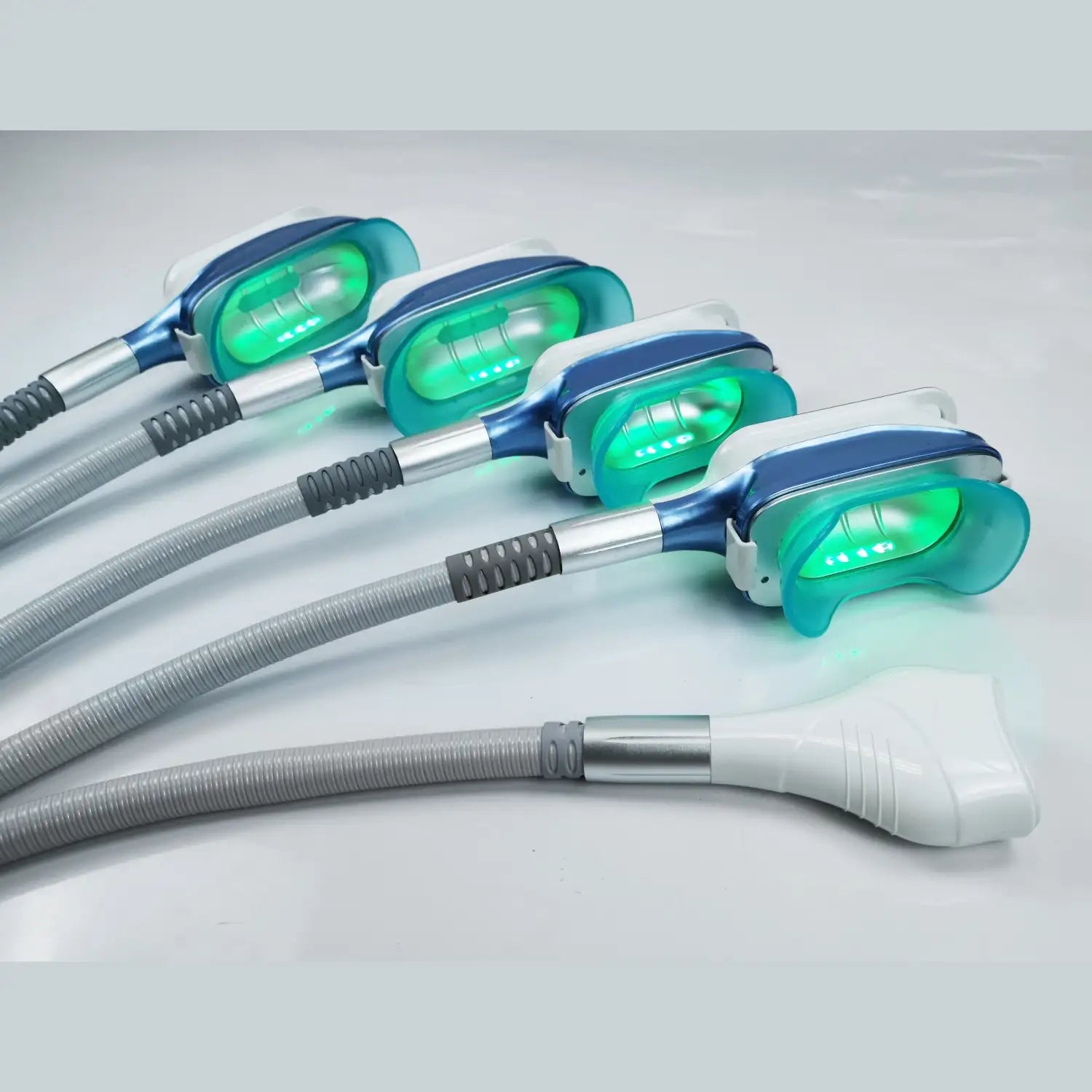

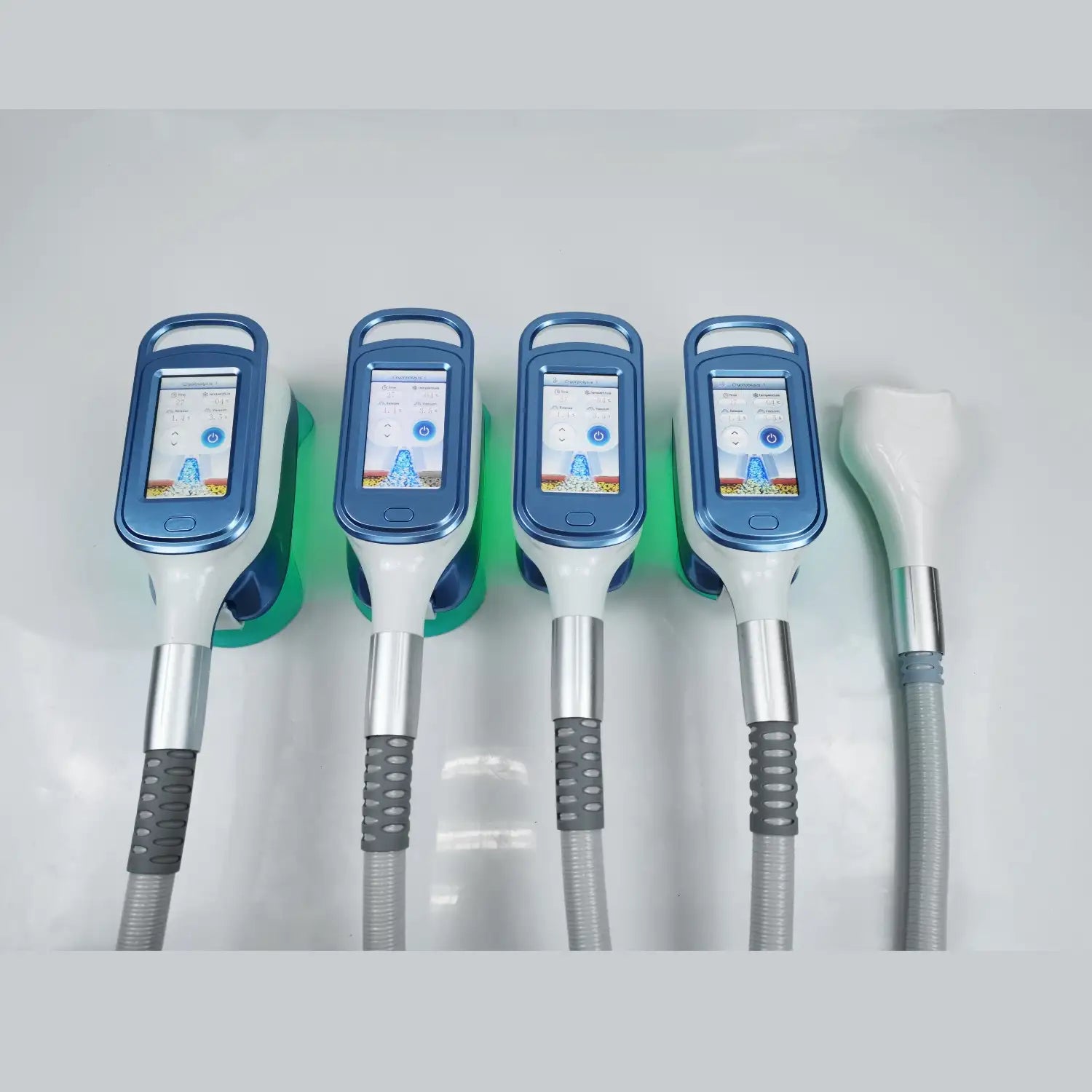

It supports five handle sizes for customized treatment plans. Each applicator is designed for a specific body zone, from larger areas like the abdomen to delicate regions like the chin.

Unlike older models, this machine features dual-handle operation. Two areas can be treated simultaneously, cutting treatment time by up to 50% while maintaining consistent results.

The system also integrates RF for skin tightening, cavitation for fat disruption, and laser pads for metabolic activation. This all-in-one platform improves patient outcomes and satisfaction.

Suitable for professional aesthetic practices, the device operates safely across a wide temperature range. It allows both cold and warm cycles to adapt to individual client needs.

Working Principle

The machine uses cryolipolysis to reduce localized fat. Controlled cold is applied to fat layers, lowering their temperature to -10°C. Fat cells are more sensitive to cold than skin or muscle.

Exposed fat cells crystallize and undergo apoptosis—a form of natural cell death. These cells are then removed gradually through the lymphatic system over several weeks post-treatment.

Pre-warming improves blood lipid separation. This boosts cold efficiency and enhances treatment safety and comfort. It also minimizes bruising and client discomfort.

The vacuum suction stabilizes the fat bulge inside the applicator. This allows uniform cold exposure, maximizing fat reduction in each session while avoiding uneven results.

Integrated radiofrequency stimulates dermal collagen. It tightens the skin and improves elasticity in areas where fat volume is reduced. This prevents post-treatment sagging.

Ultrasound cavitation breaks up subcutaneous fat using sound waves. It assists lymphatic drainage, reduces volume, and smooths the skin surface.

Lipo laser pads use 650nm light to activate fat metabolism. This improves overall slimming results and boosts circulation in treated zones.

Key Benefits

• Non-invasive fat reduction without surgery, anesthesia, or downtime.
• 360° cooling technology ensures full fat exposure and consistent results.
• Dual-handle design treats two areas at the same time, saving time.
• Visible results in 3–6 weeks, with continued improvement over 2–3 months.
• Pre-warming feature enhances comfort and protects skin during treatment.
• Safe for all body areas, including abdomen, thighs, arms, flanks, and chin.
• RF tightens loose skin and restores firmness after fat reduction.
• Cavitation helps break up deeper fat layers and improve lymphatic flow.
• Laser pads promote faster fat metabolism and refine body contours.
• Proven technology trusted by professional clinics and aesthetic centers.

Key Features

• Five cryo handles in various sizes for full-body application.
• Temperature range: -10°C to +45°C for both cooling and heating cycles.
• Dual-channel cooling for simultaneous treatment of two zones.
• 10.4-inch touchscreen interface for easy control and monitoring.
• 360-degree full-contact freezing surface for higher treatment efficiency.
• Real-time temperature and vacuum pressure monitoring for safety.
• RF skin tightening with 5 MHz frequency for face and body.
• 40KHz cavitation head to dissolve and disrupt fat cells.
• Eight laser pads (6 large, 2 small) for enhanced fat metabolism.
• Automatic water circulation, frost-proof modules, and alarm protection.

Technical Specifications

• Power Supply: AC220V±10% 50Hz / AC110V±10% 60Hz
• Rated Power: 800W
• Cooling Temperature: -10°C to +10°C
• Heating Temperature: up to +45°C
• Vacuum Pressure: 0–80 kPa
• RF Frequency: 5 MHz
• Cavitation Frequency: 40 kHz
• Laser Power: 100 mW per pad
• Touchscreen Size: 10.4 inches
• Coolant Type: Purified water or dedicated antifreeze fluid
• Handle Sizes: 5 (195×85mm, 160×70mm, 120×45mm, 100×35mm, 80×40mm)
• Machine Dimensions: 58 × 52 × 150 cm

How to Use

Step 1: Clean the treatment area and apply an anti-freeze membrane to protect the skin.

Step 2: Select the appropriate handle based on body area. Attach securely to the cryo port.

Step 3: Adjust suction, temperature, and session duration on the touchscreen control panel.

Step 4: Begin treatment. The vacuum will draw fat into the handle and start the cooling cycle.

Step 5: After 35–45 minutes, remove the applicator and massage the area for 2–3 minutes.

Step 6: Optionally use RF or cavitation handles to boost results and tighten the skin.

Step 7: Clean the equipment. Refill coolant and inspect filters before the next session.

Packing List

• 1 × Professional CoolSculpting Machine Console

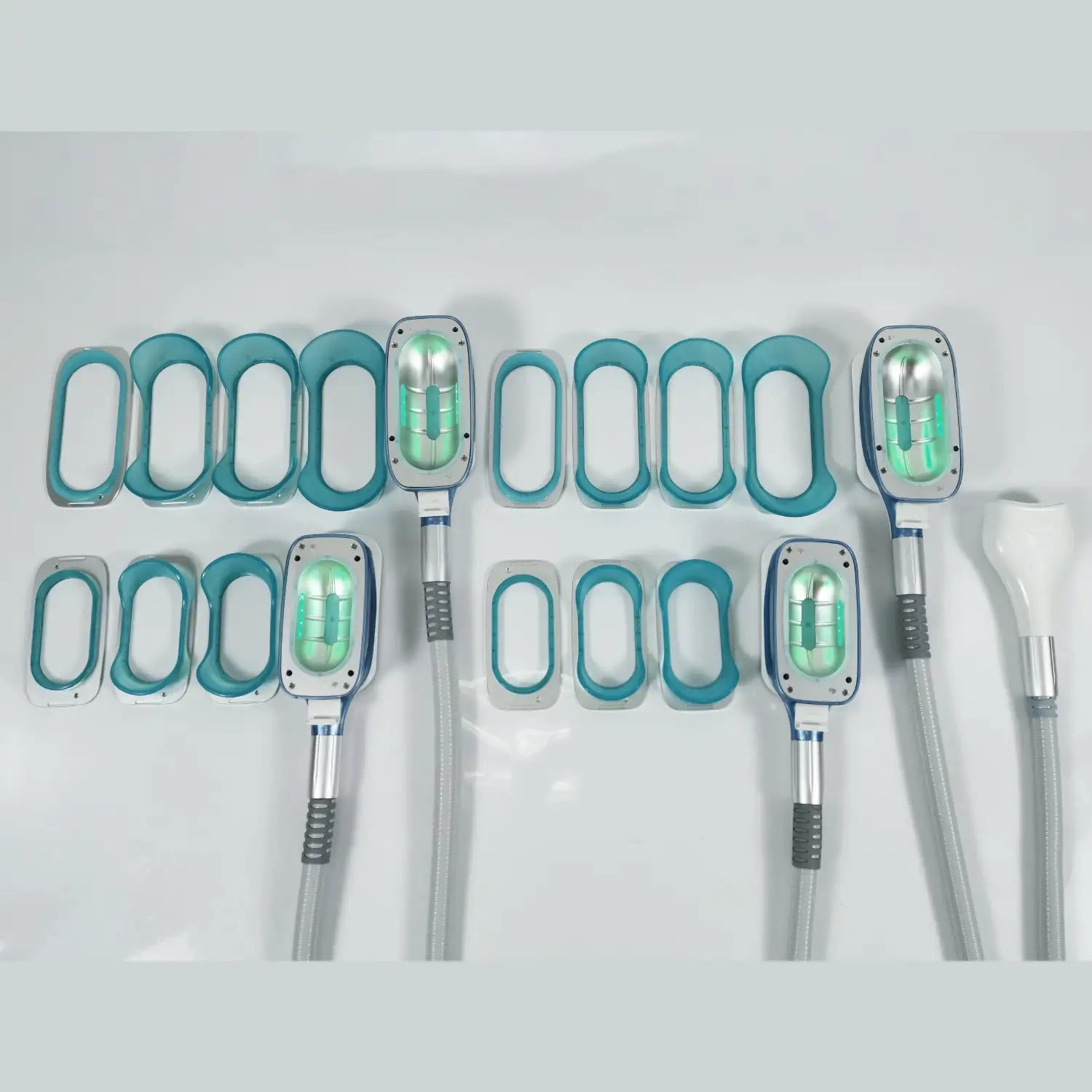

• 5 × Cryo Handles (Large, Medium, Small, Mini, Chin)

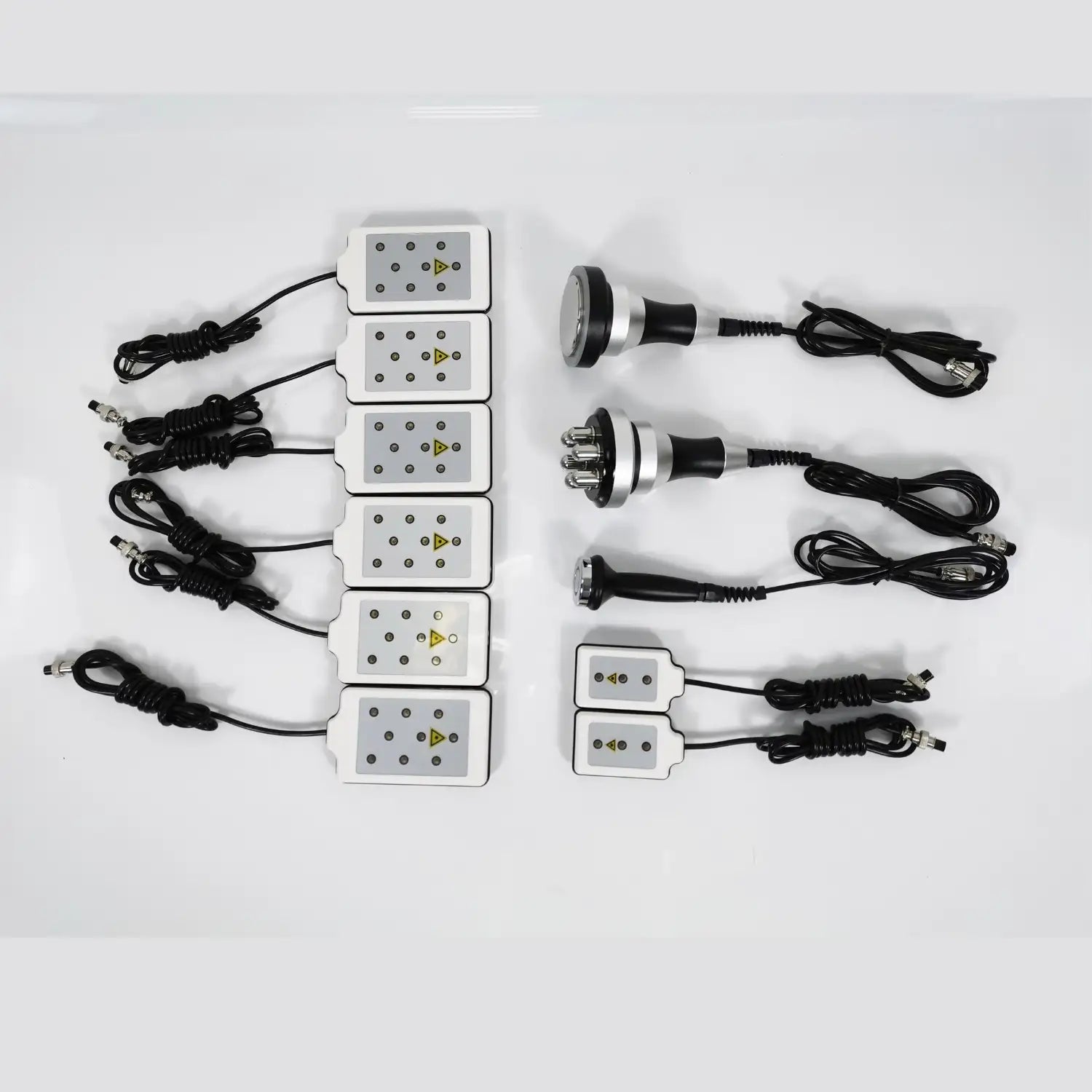

• 1 × Face RF Handle
• 1 × Body RF Handle
• 1 × 40KHz Cavitation Handle
• 8 × Lipo Laser Pads (6 large, 2 small)
• 1 × Power Cable
• 1 × User Manual
• 1 × Drain Hose + Funnel Set
• 1 × Accessory Holder
• 1 × Bandage Pack
• 5 × Anti-Freeze Membrane Sample Pack

FAQs

1. Is the Professional CoolSculpting Machine safe?

Yes. It includes frost-proof modules, real-time monitoring, and safety alerts for overheating or incorrect use.

2. What results can I expect?

Most users see a fat layer reduction of up to 25% in the treated area after one to three sessions.

3. Is the treatment painful?

No. Users may feel mild suction or cooling, but the treatment is generally well-tolerated and comfortable.

4. How many sessions are required?

Typically 2–3 sessions per area are needed for visible improvement. Sessions should be spaced 4–6 weeks apart.

5. Are the results permanent?

Yes. Fat cells removed during treatment will not regenerate. A healthy diet helps maintain results long-term.

6. What areas can be treated?

Common treatment zones include belly, flanks, thighs, arms, back, and double chin. Five handle sizes ensure a tailored fit.

7. Can I treat two areas at the same time?

Yes. Dual-channel design supports two handles operating at once for faster sessions and balanced results.

8. Are there side effects?

Temporary numbness, redness, or swelling may occur but typically fades within hours to a few days.

9. Is it suitable for all skin types?

Yes. The technology is safe for all skin tones and does not affect skin pigment or texture.

10. Is training required to operate this machine?

Yes. Basic training is recommended to ensure correct application, safety, and optimal client results.
