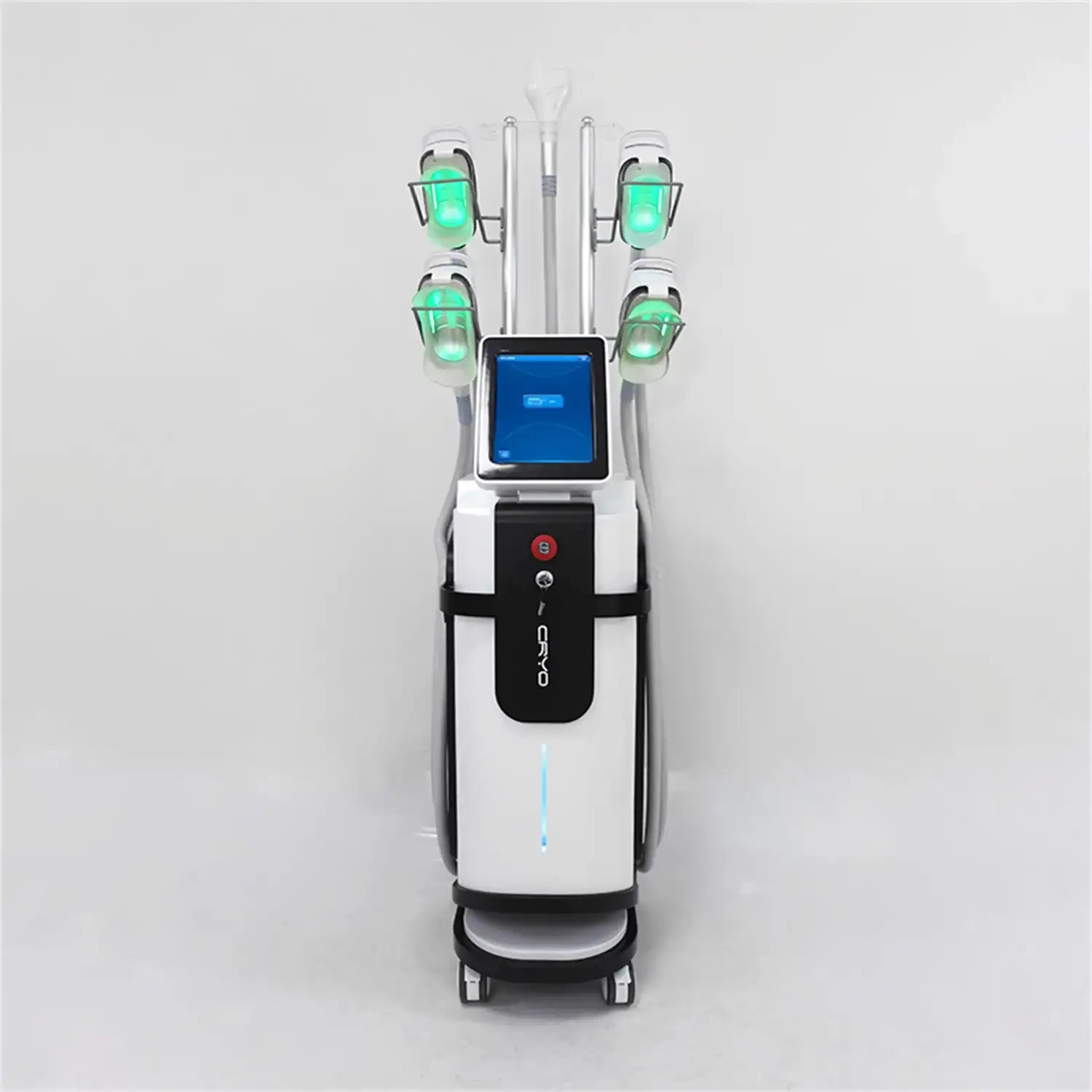

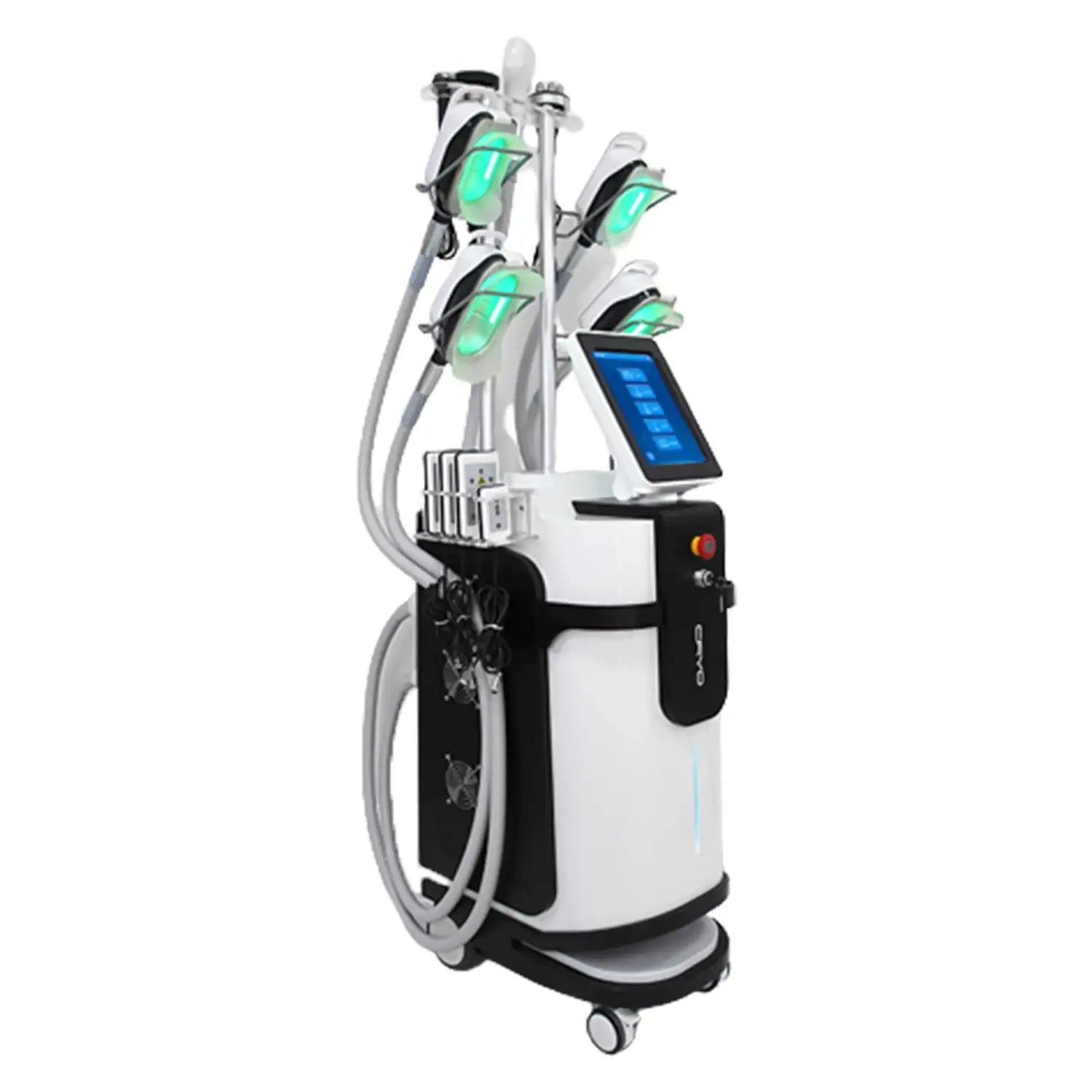

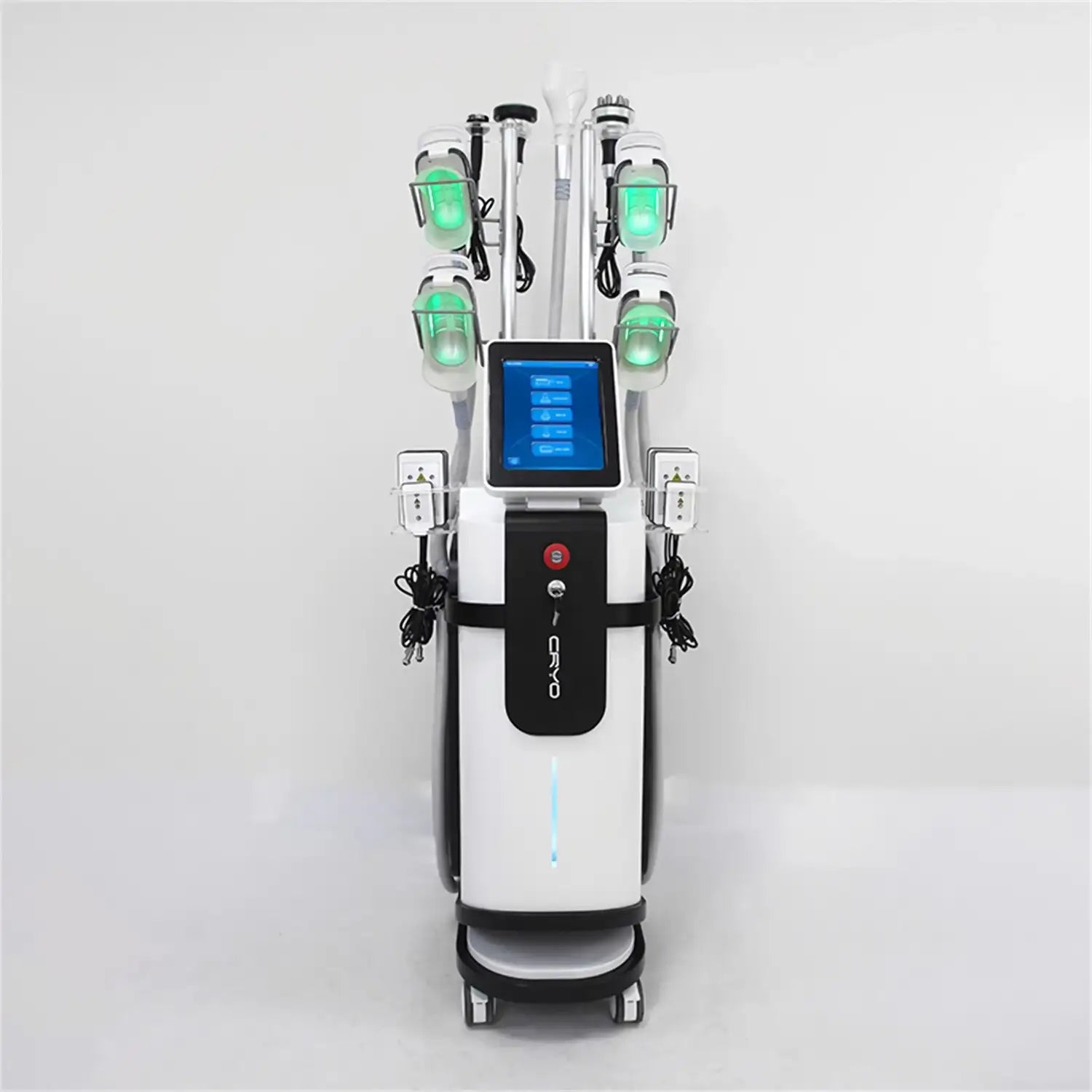

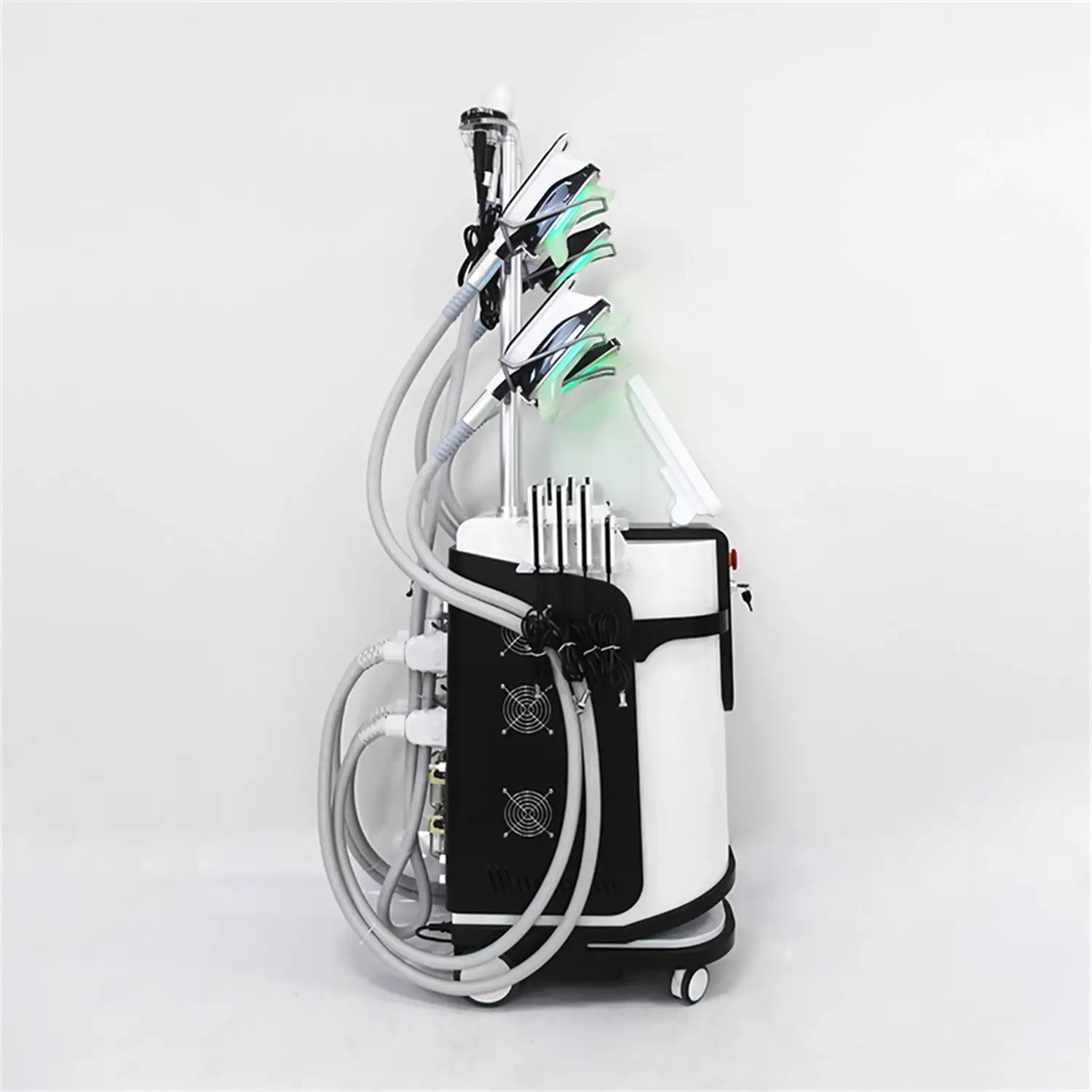

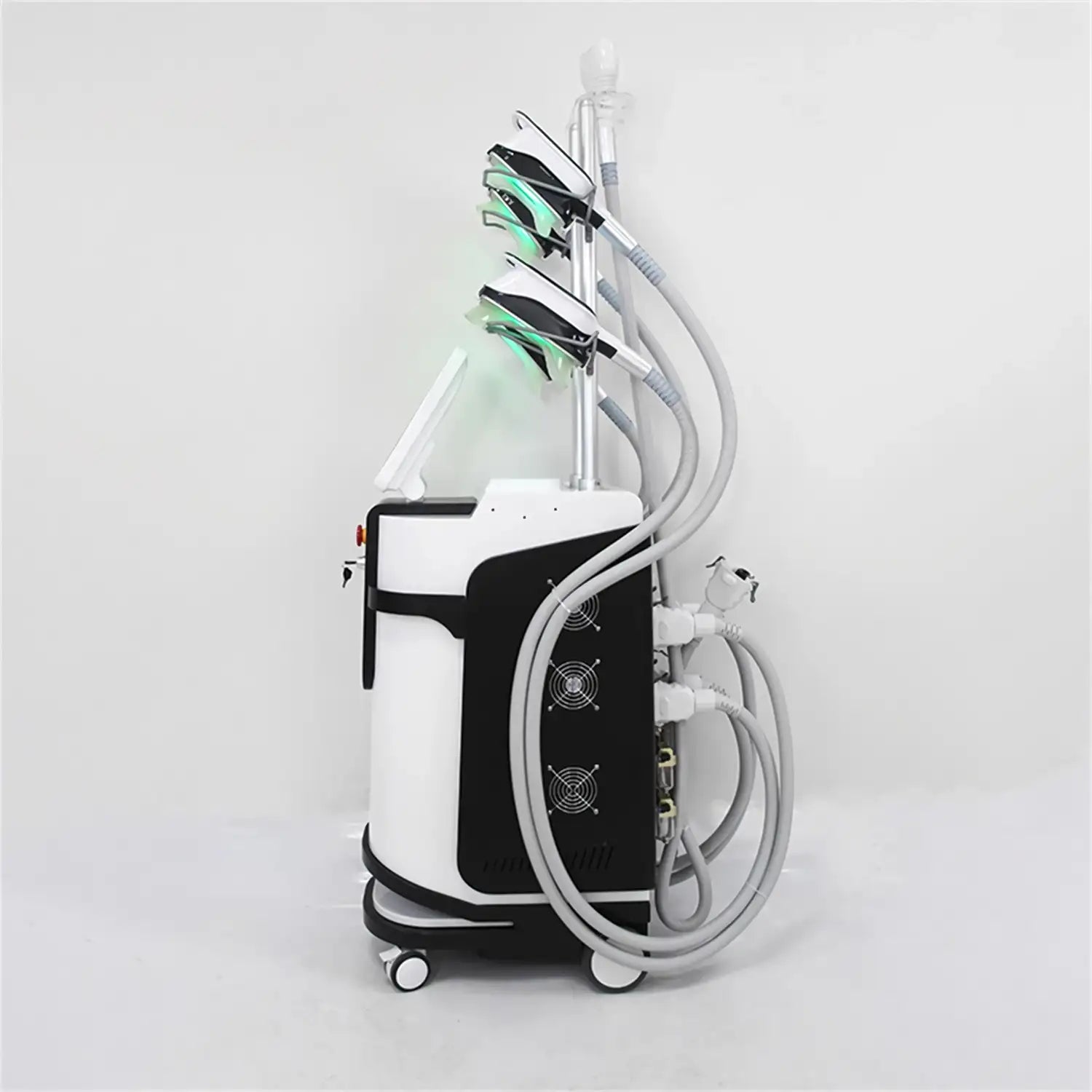

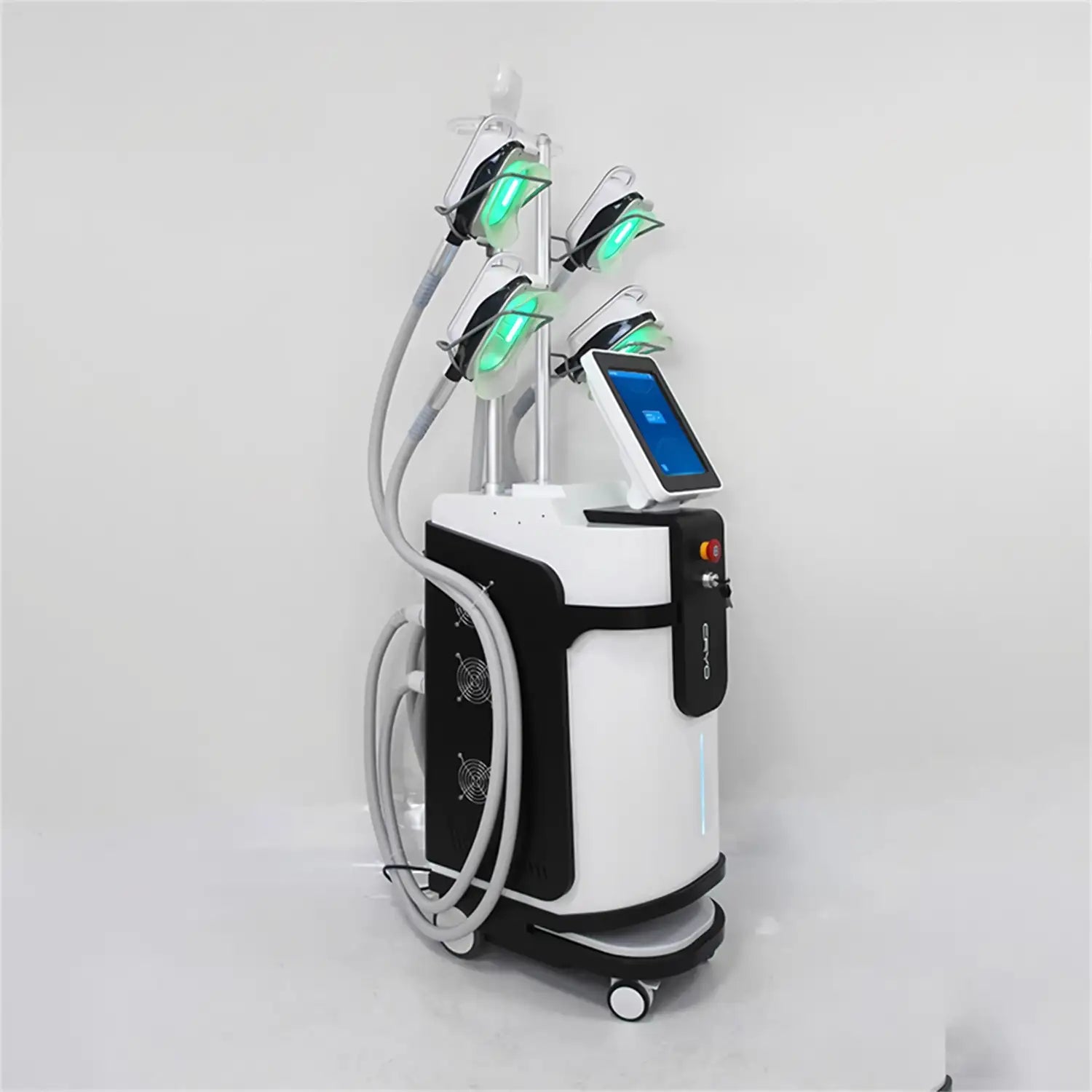

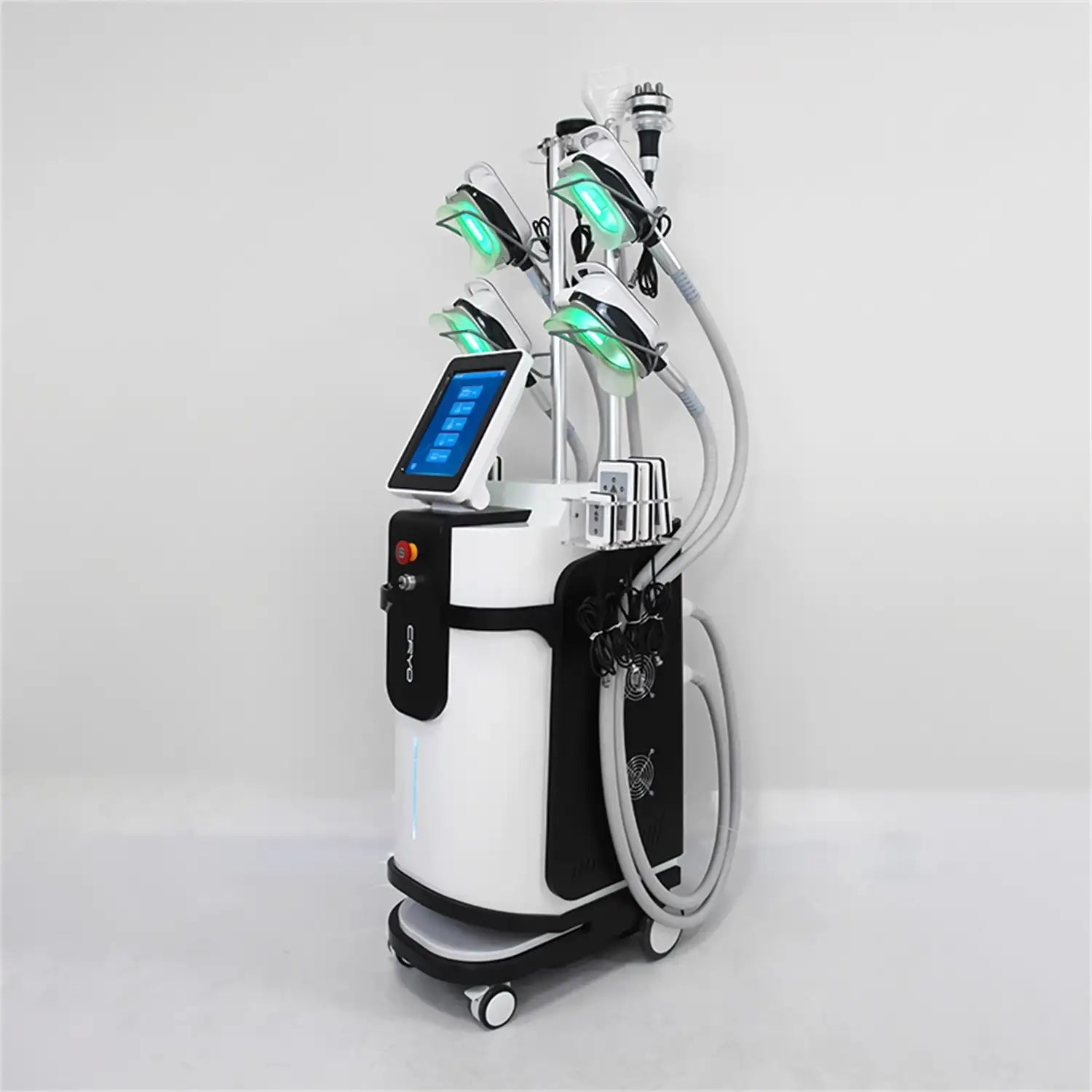

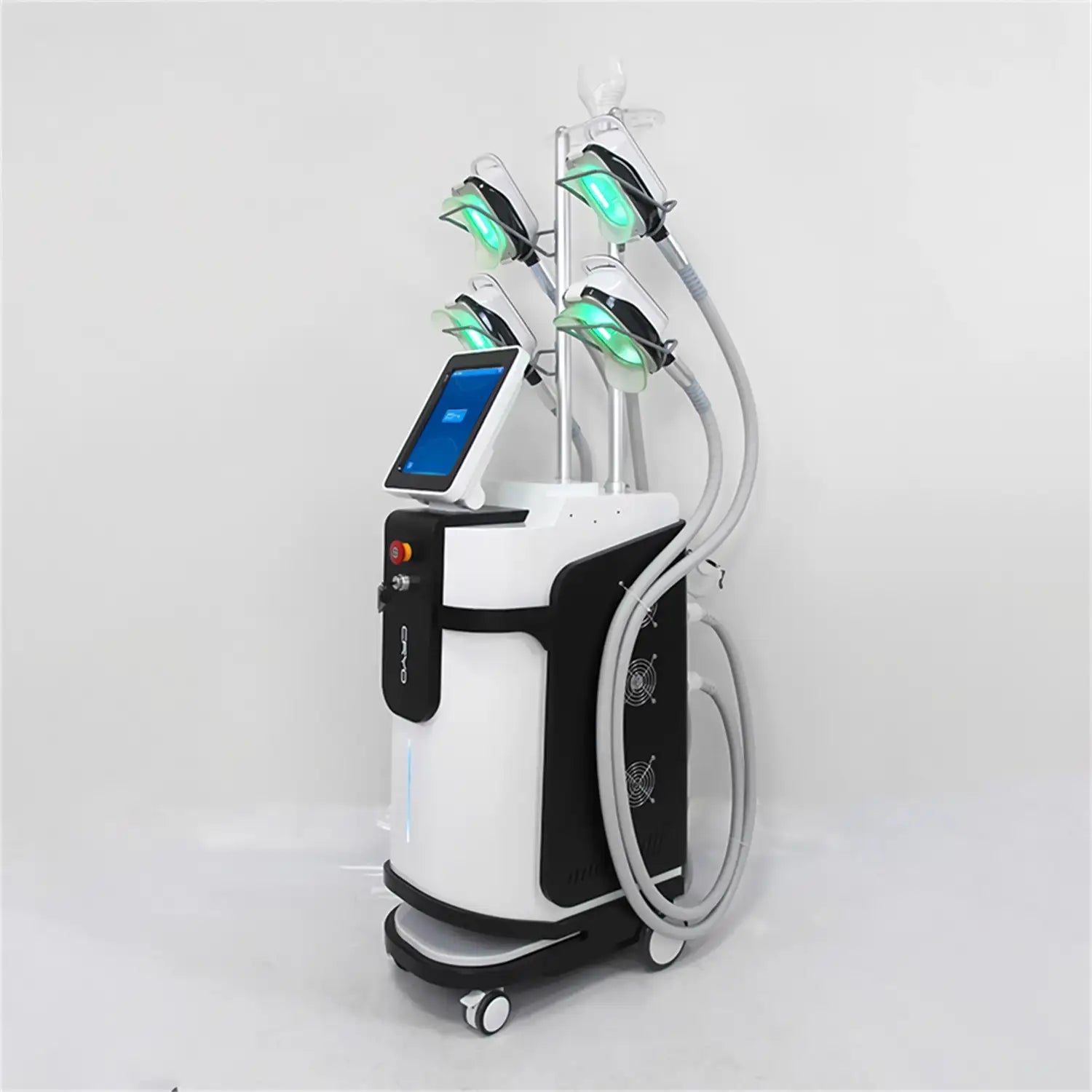

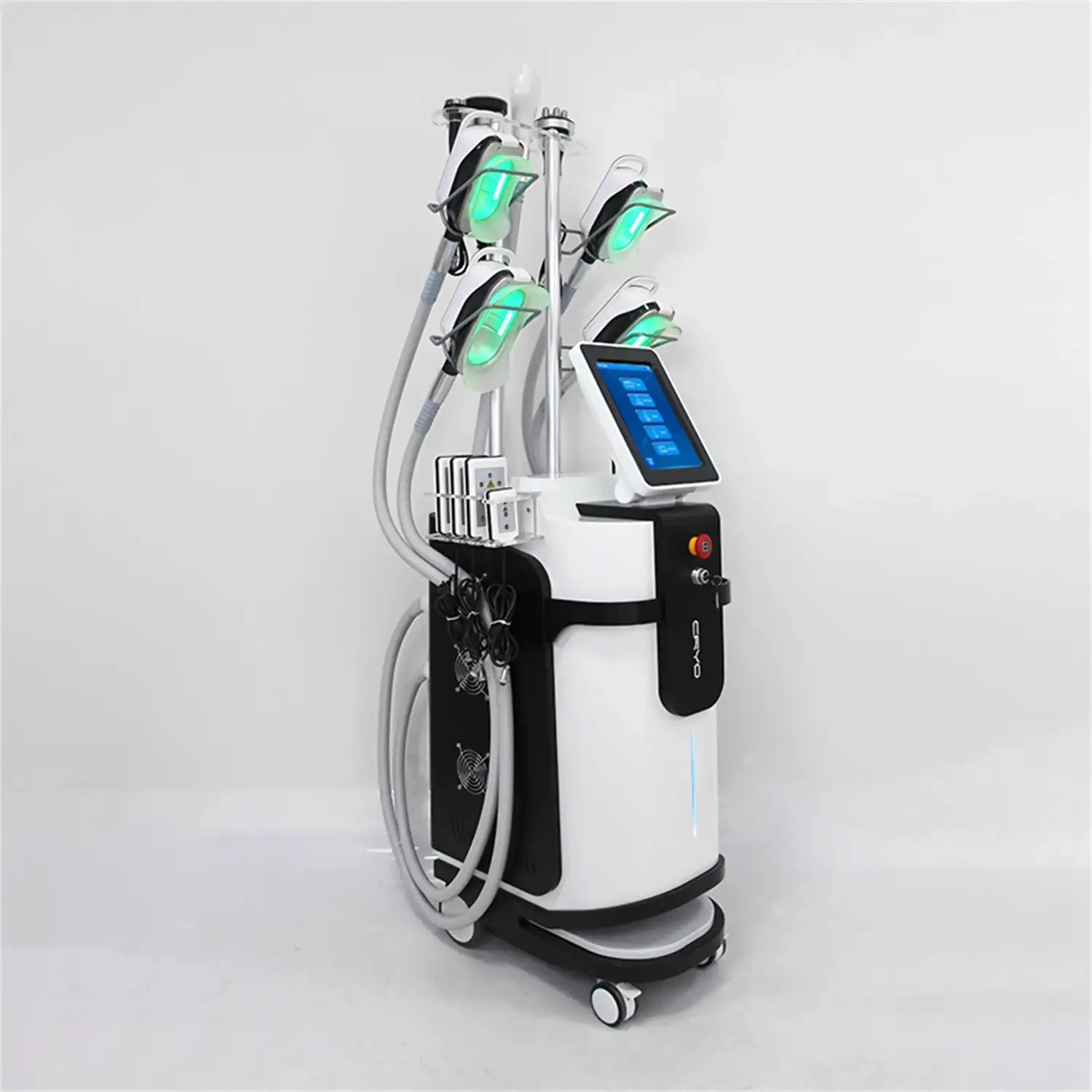

Cryo Body Sculpting Machine with 5 Handles

Introduction

The Cryo Body Sculpting Machine is a non-invasive fat reduction system. It uses advanced 360° cryolipolysis to freeze and destroy fat cells in targeted body areas.

This machine offers professional-grade body contouring results without surgery or downtime. It targets stubborn fat in the abdomen, arms, thighs, waist, and back with customizable precision.

By lowering fat cell temperature to as low as -10°C, it causes crystallization and natural cell death. The body then gradually eliminates these fat cells through the lymphatic system.

The system includes five interchangeable handles of various sizes. Each is ergonomically designed to fit body curves and ensure consistent, even contact with the skin.

The machine also integrates RF (radiofrequency), laser therapy, and ultrasonic cavitation. These additional features improve skin firmness and enhance fat metabolism post-cryolipolysis.

Its smart digital interface enables full control over treatment temperature, suction pressure, and timing. Pre-set programs make operation easy, even for new users.

With dual-channel cryo technology, two areas can be treated at the same time. This saves time and increases clinic efficiency, especially for busy schedules or combination treatments.

The machine is safe for all skin types and tones. Built-in temperature sensors, automatic shutoffs, and water circulation monitoring ensure client comfort and device safety at all times.

What is Cryo Body Sculpting Machine

The Cryo Body Sculpting Machine is a body shaping device. It reduces localized fat by using 360° cryolipolysis and multi-function technologies for safe, efficient results.

Unlike traditional cryo systems, this machine applies cooling evenly around the treatment area. It delivers better fat coverage, faster results, and improved user comfort.

The unit also offers radiofrequency (RF), ultrasonic cavitation, and laser pads. These therapies help tighten skin and boost fat breakdown, making the treatment more comprehensive.

The machine is ideal for professionals in beauty clinics, med spas, or wellness centers. It combines proven fat reduction science with ergonomic design and user-friendly features.

Working Principle

The cryo function targets fat cells by lowering their temperature to below freezing. Fat cells are more vulnerable to cold than surrounding tissue, so only fat is affected.

As fat freezes, it crystallizes. This leads to apoptosis, a process where fat cells naturally die and are removed by the body’s metabolic systems over time.

Vacuum suction brings the fat bulge into the applicator chamber. It ensures uniform contact with the 360° cooling plates for even fat exposure.

Sympathetic nervous system stimulation enhances lipolysis. This speeds up fat processing and removal following the treatment session.

The RF system emits heat deep into the dermis. It stimulates collagen and elastin production, which helps firm and smooth skin in treated areas.

Ultrasonic cavitation uses sound waves to disrupt subcutaneous fat membranes. It supports fat liquefaction and improves lymphatic drainage.

Laser pads (650nm) increase cellular metabolism and blood flow. This helps release fatty acids and speeds up contouring results after cryolipolysis.

Key Benefits

• Non-invasive fat reduction without surgery, needles, or downtime.
• 360° surround cooling improves fat exposure and treatment consistency.
• Five handle sizes fit various body areas like arms, abdomen, and chin.
• Dual-channel cryo handles allow simultaneous treatment on two zones.
• RF tightens and firms the skin by boosting collagen production.
• Cavitation breaks down fat and reduces cellulite appearance.
• Laser therapy enhances metabolic rate and fat elimination.
• Pre-set programs and touchscreen controls simplify usage.
• Safe for all skin types with built-in temperature and vacuum monitoring.
• Visible results in 3–6 weeks, with full effects after 8–12 weeks.

Key Features

• 360° cryolipolysis handles with full-area cold coverage.
• Temperature range adjustable from -10°C to +45°C.
• Five applicator sizes for full-body versatility.
• Dual-handle design for time-saving two-zone sessions.
• Integrated RF, cavitation, and laser therapy modes.
• Touchscreen interface with digital settings and error detection.
• Smart water circulation and filter system for cooling efficiency.
• Anti-freeze membrane compatibility to protect skin during cryo.
• Pulse vacuum control for comfortable suction modulation.
• Pre-programmed session times for consistent and repeatable results.

Technical Specifications

• Power Supply: AC220V ±10%, 50Hz
• Rated Power: 1500W
• Temperature Range: -10°C to +45°C
• Vacuum Pressure: 0–80kPa (adjustable)
• Treatment Time: 1–60 minutes (customizable)
• Handles Included: 5 (195×85mm, 160×70mm, 120×45mm, 100×35mm, 80×40mm)
• RF Frequency: 5 MHz
• Cavitation Frequency: 40 kHz
• Laser Wavelength: 650 nm
• Cooling System: Circulated purified water + air
• Touchscreen: 10.4-inch full-color digital display
• Machine Dimensions: 65 × 55 × 140 cm
• Net Weight: 72 kg

How to Use

Step 1: Select target area. Clean and dry skin. Apply anti-freeze membrane to protect the skin.

Step 2: Choose the suitable cryo handle. Attach to the treatment zone. Ensure tight suction and comfort.

Step 3: On the screen, select treatment mode. Set vacuum strength, temperature, and time as needed.

Step 4: Begin session. Monitor client comfort and device stability during the entire treatment.

Step 5: After completion, remove handle slowly. Massage the treated area for 2–3 minutes to enhance drainage.

Step 6: Clean handles and inspect coolant level. Refill or filter as necessary before storing.

Packing List

• 1 × Cryo Body Sculpting Machine Console

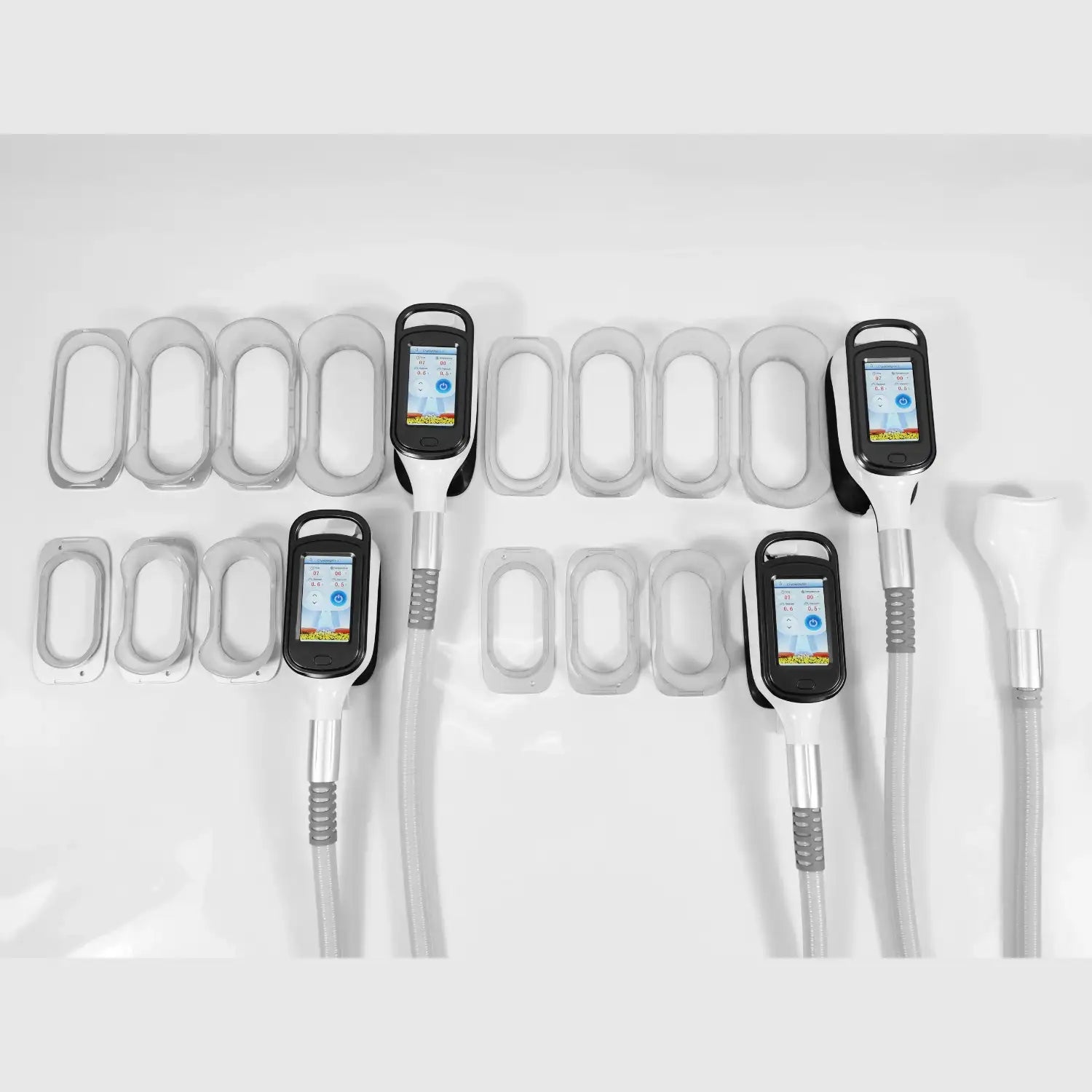

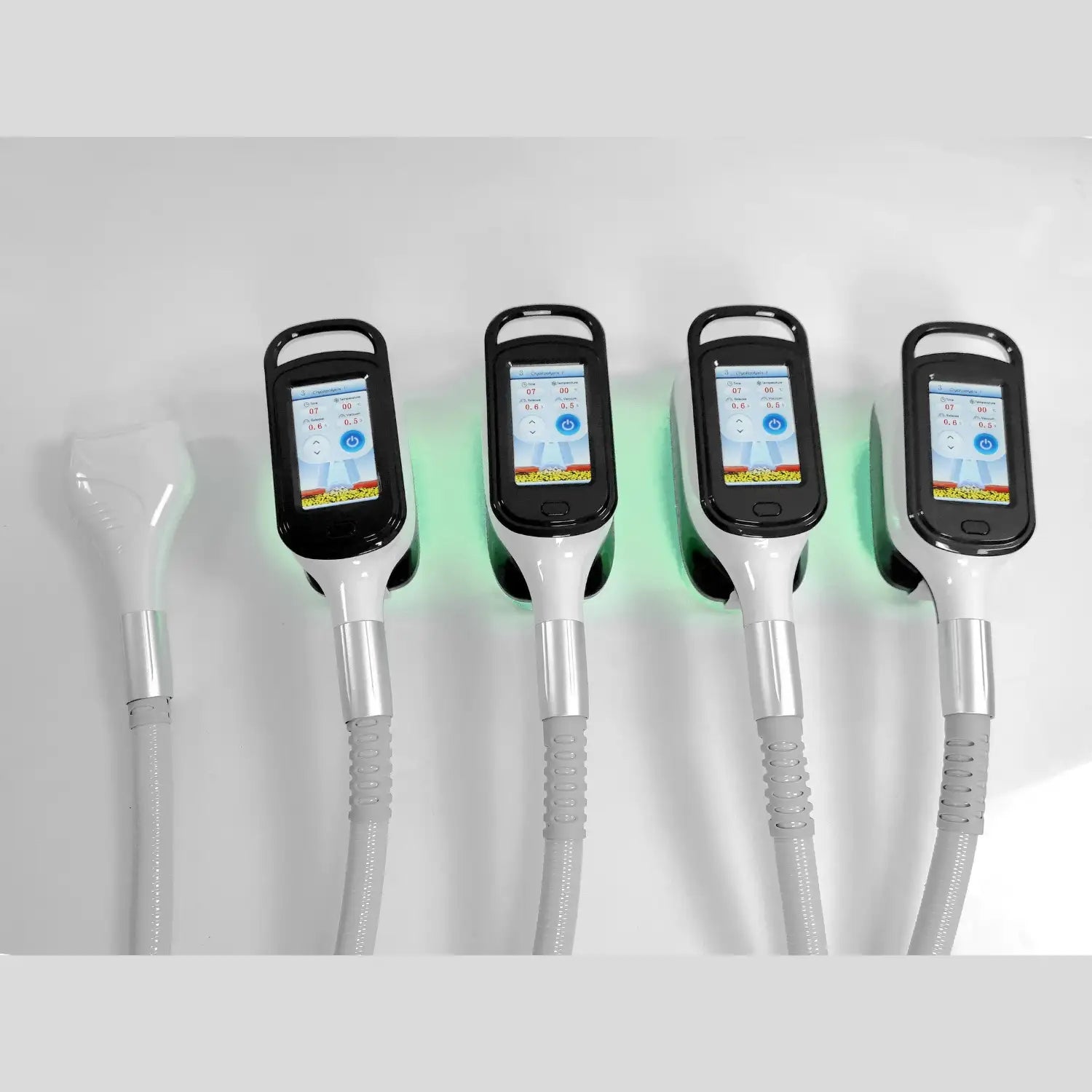

• 5 × Cryo Handles (various sizes for body/chin/arms)

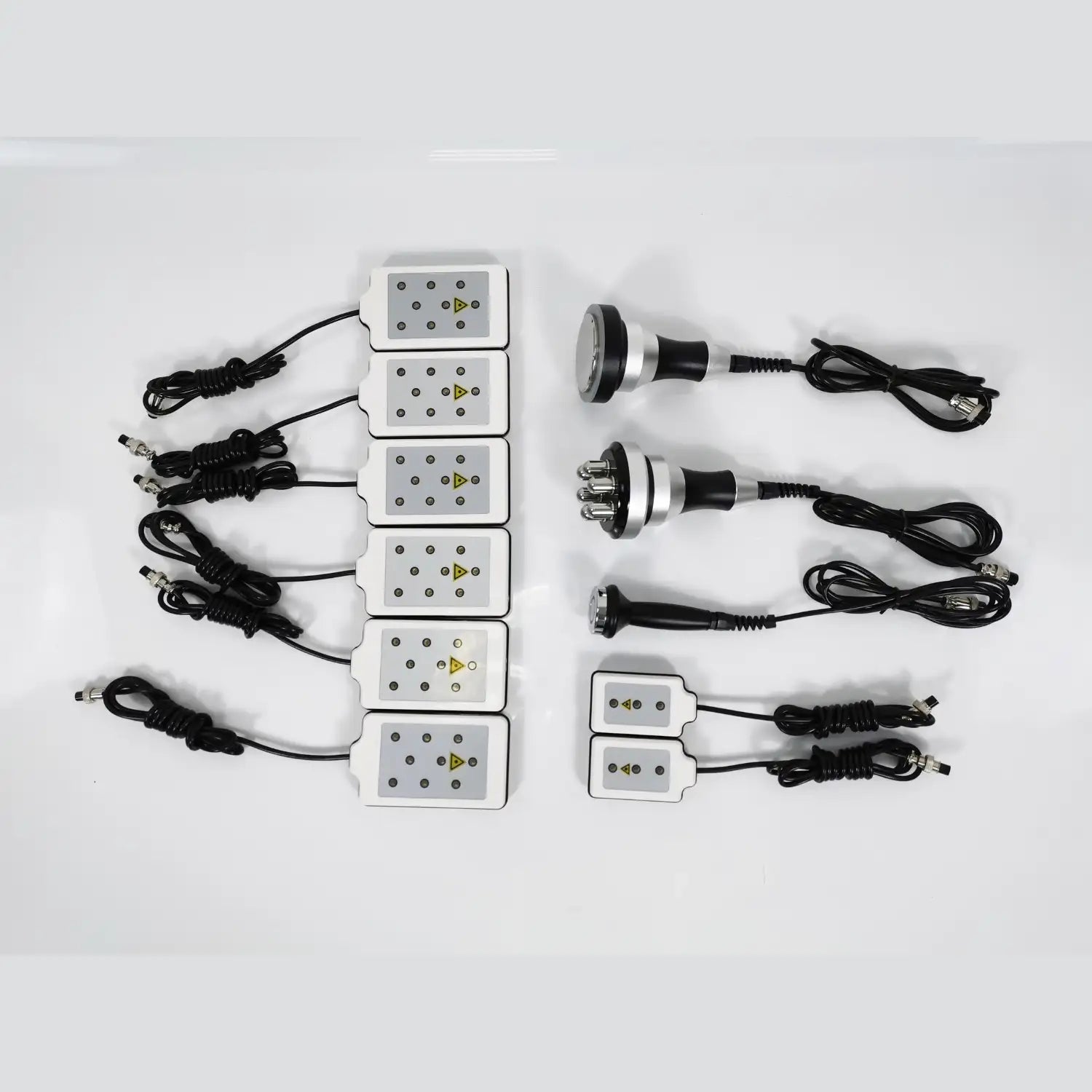

• 1 × RF Handle
• 1 × Cavitation Handle
• 8 × Laser Pads (6 large, 2 small)
• 1 × Power Cord
• 1 × Water Refill Kit + Drain Hose
• 1 × LCD Touchscreen Control System
• 1 × Accessory Storage Tray
• 5 × Anti-Freeze Membrane Sample Pack
• 1 × English User Manual

FAQs

1. Is Cryo Body Sculpting Machine treatment painful?

No. You may feel suction and cold at first, but treatment is comfortable for most clients.

2. How soon can I see results?

Initial improvements appear within 3–6 weeks. Full results develop in 2–3 months.

3. Is this machine safe?

Yes. It has temperature monitoring, auto shut-off, and skin protection measures for safe use.

4. Can it be used on the chin?

Yes. The smallest cryo handle is ideal for the chin and other small areas.

5. Are results permanent?

Fat cells removed are gone permanently. A healthy lifestyle supports long-term maintenance.

6. How many sessions do I need?

2–3 sessions per area are typically recommended, spaced 4–6 weeks apart.

7. Can two zones be treated at once?

Yes. Dual handles allow simultaneous treatment of two body areas in one session.

8. What are possible side effects?

Temporary redness, numbness, or swelling may occur. These usually resolve within a few days.

9. Can I use this machine in a professional clinic?

Yes. It is designed for clinic and spa use with professional-grade components and safety systems.

10. Is it suitable for all skin tones?

Yes. The non-thermal mechanism is safe for all Fitzpatrick skin types without discoloration risk.
