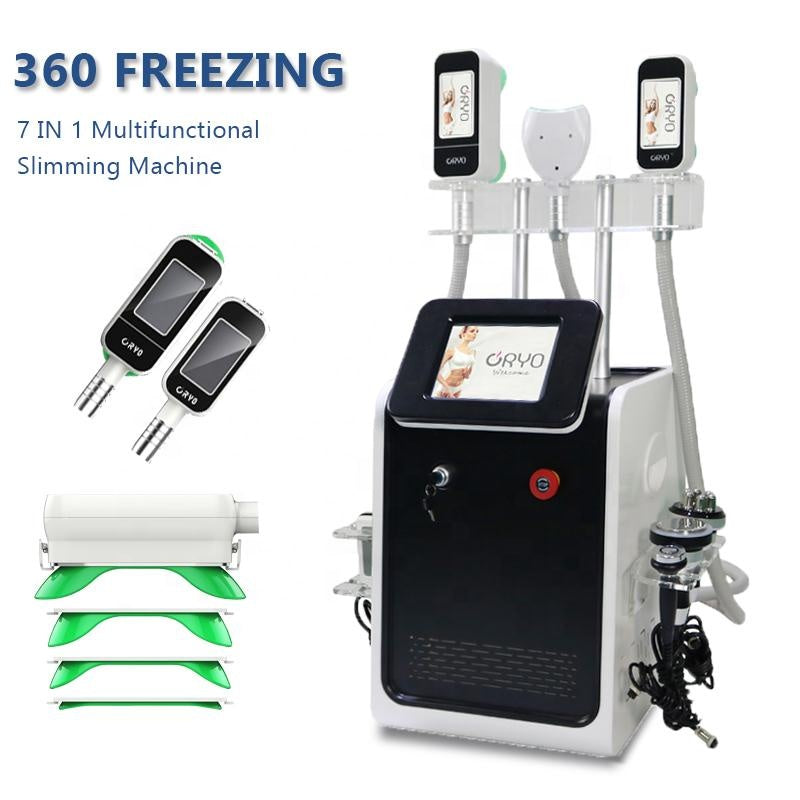

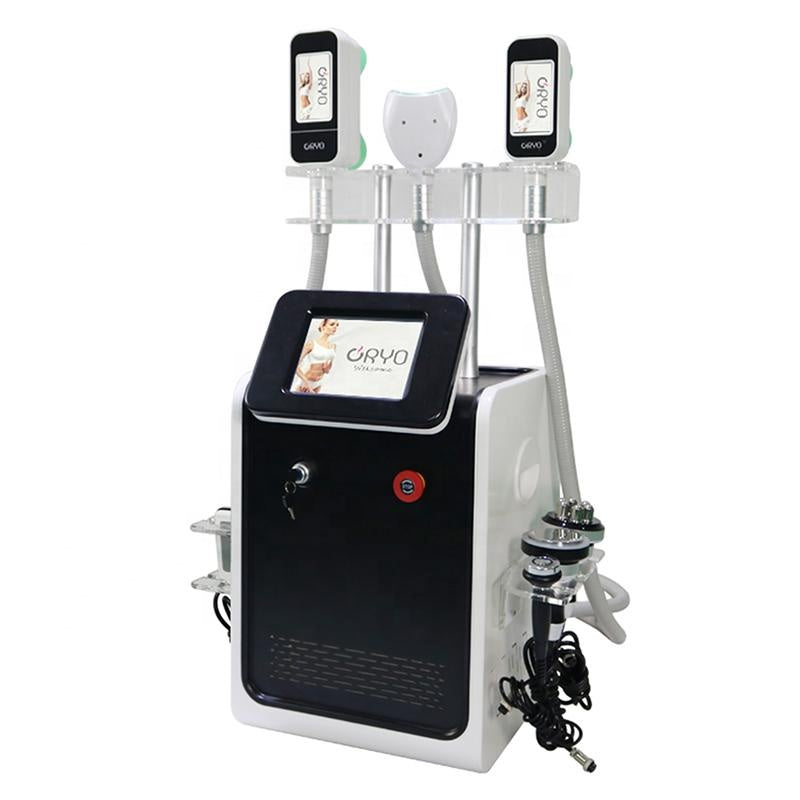

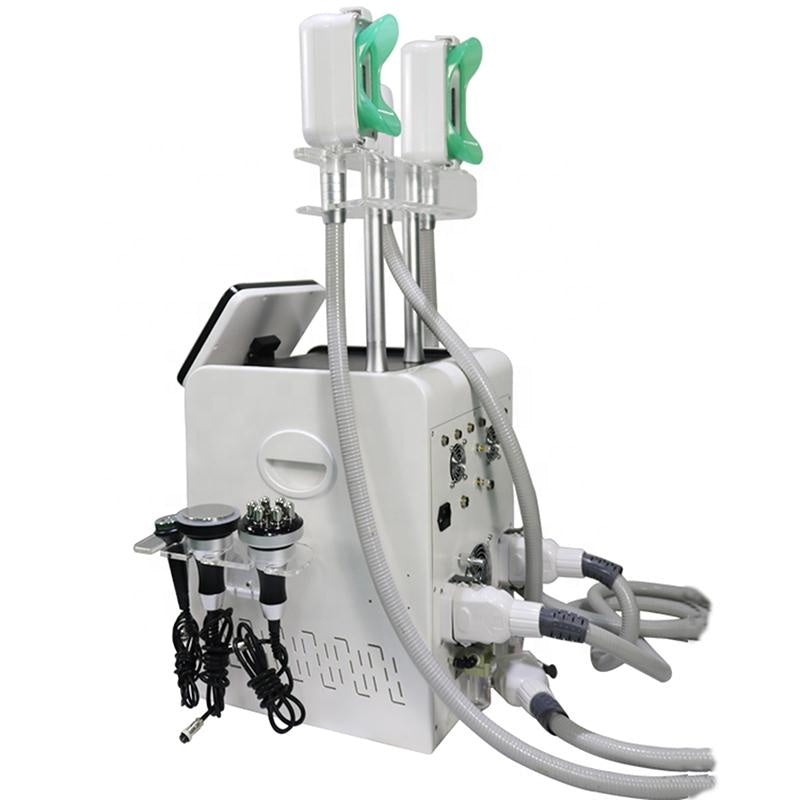

Freeze Sculpting Machine for Fat Reduction Treatments

Introduction

The Freeze Sculpting Machine is a professional fat reduction system designed to reshape the body without surgery. It uses 360-degree cryolipolysis technology to freeze and eliminate fat cells.

By applying precise cold to fat layers, this machine safely breaks down fat cells, which are then naturally eliminated by the body. It offers visible results with no downtime or recovery period.

The upgraded 360° surround cooling handpieces treat fat more evenly and quickly. One treatment can reduce up to 28% of fat in the target area, enhancing efficiency and client satisfaction.

This Freeze Sculpting Machine includes 2 cryo handles that can work together, 6 laser pads, and built-in RF and cavitation functions. It treats the entire body, including chin, arms, belly, back, and thighs.

It also offers real-time vacuum and temperature control, soft silica gel cups for comfort, and blue light anti-inflammation support. Clients can return to work immediately after each session.

Safe, non-invasive, and clinically proven, the Freeze Sculpting Machine is an excellent tool for salons, clinics, and med spas seeking consistent body contouring results without surgery.

Its advanced cooling system, quiet operation, and ergonomic handle design make it ideal for professionals offering fat reduction, skin tightening, and full-body reshaping services.

The combination of technologies—360 cryo, RF, laser lipo, and 40K cavitation—ensures complete treatment coverage, making this device cost-effective, time-saving, and highly effective.

This machine delivers visible improvements in body shape and skin condition while maintaining high safety standards, comfort, and reliability in every treatment session.

What is Freeze Sculpting Machine

The Freeze Sculpting Machine is a multi-functional body contouring system. It uses cryolipolysis, RF, cavitation, and laser to eliminate fat and tighten skin non-surgically.

The main feature is 360-degree cryolipolysis. This means that fat cells are frozen from all directions inside the treatment cup, improving coverage and fat reduction rate.

It features two cryo handles that can work together. This allows simultaneous treatment of two body areas or two clients, saving time and improving clinic efficiency.

With interchangeable cups in 7 sizes, it fits all body areas—from large zones like the abdomen to small regions like the chin and arms. It offers precise control and flexibility.

The machine also integrates 40KHz cavitation, face/body RF, and 650nm laser pads. These functions further accelerate fat breakdown and improve skin tightening and elasticity.

Real-time temperature and pressure monitoring ensures safe operation. The system is easy to use with a touch screen interface built directly into each handle.

Soft silicone cooling heads improve treatment comfort. Clients experience minimal discomfort and can resume their normal activities right after the session.

Working Principle

The Freeze Sculpting Machine freezes fat cells at temperatures as low as -10°C. These cells crystallize and die without affecting surrounding skin, muscle, or nerves.

The dead fat cells are gradually eliminated through the body's natural metabolic process. This leads to a permanent reduction in fat in the treated area.

Vacuum suction draws the fat into the applicator cup, ensuring full contact with the 360° cooling plates. This improves treatment uniformity and effectiveness.

The built-in RF function uses radiofrequency energy to heat the dermis, stimulate collagen, and tighten loose skin during or after cryolipolysis.

40KHz cavitation emits ultrasound to rupture fat membranes and enhance lymphatic drainage. It helps improve body contour and reduce stubborn fat pockets.

Laser pads emit 650nm wavelength light that penetrates fat tissue, increases metabolism, and accelerates fat breakdown. It also improves blood flow and reduces inflammation.

Key Benefits

• Non-invasive treatment with no surgery, downtime, or anesthesia required.
• Reduces up to 28% of fat in one treatment session using 360° cooling technology.
• Two cryo handles work simultaneously to treat multiple areas or clients at once.
• Multiple cup sizes fit all body parts, from chin to belly, thighs, and arms.
• Combines RF, cavitation, and laser for enhanced fat reduction and skin tightening.
• Blue light reduces inflammation and minimizes redness and post-treatment swelling.
• Improves blood circulation, relieves muscle tension, and stimulates lymphatic flow.
• Comfortable treatment with soft silicone handles and quiet operation.
• Safe and effective with real-time pressure and temperature monitoring.
• High customer satisfaction with over 100% full contact cooling area coverage.

Key Features

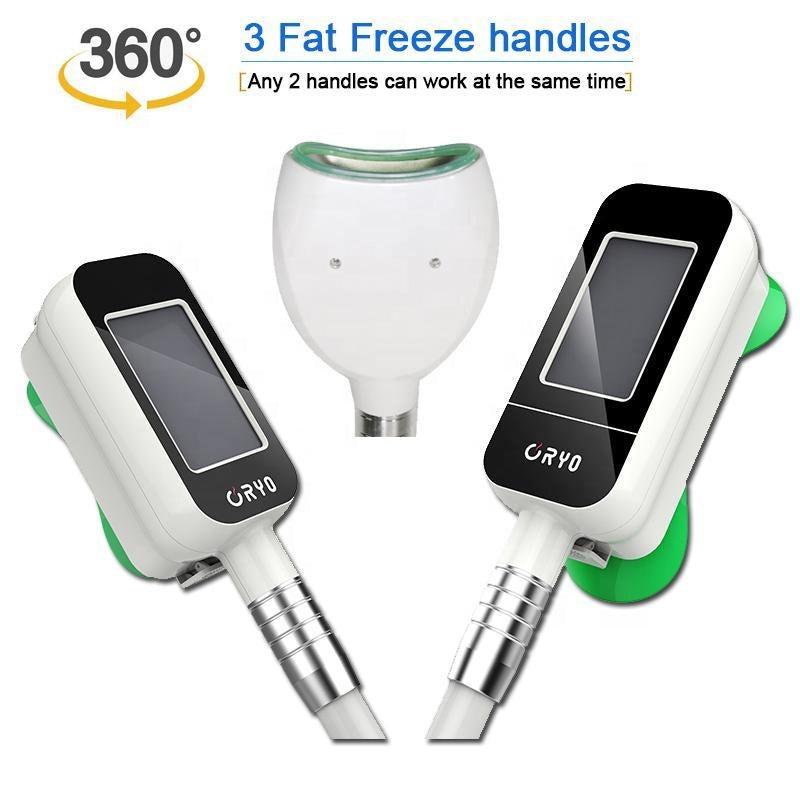

• 6 total handles including 2 large 360° cryo handles and 1 mini cryo handle.
• 7 interchangeable contour cups for different treatment zones and fat bulge sizes.
• 360-degree full-area freezing improves results and reduces session time by 50%.
• Built-in handpiece touchscreens display vacuum pressure and treatment temperature.
• Laser wavelength: 650nm; 42 diodes total; each big pad includes 9 diodes at 135mw each.
• RF heads for face and body tightening after fat removal.
• 40KHz cavitation breaks down deep fat and reduces fluid retention.
• Japanese silent vacuum pump reduces operating noise by 30% for a better experience.
• Advanced cooling system: water + wind + semiconductor + condenser supports long use.
• Ergonomic handpieces, user-friendly software, and wide application support.

Technical Specifications

• Cooling Temperature Range: -10°C to +10°C
• Vacuum Intensity: 0–90 KPa
• Laser Wavelength: 650nm
• Laser Diodes: 42 total; 135mw per diode
• Cavitation Frequency: 40KHz
• RF Frequency: 5MHz
• Laser Pads: 6 total
• Handles: 2 large 360° cryo + 1 mini cryo
• Cooling System: Water + Air + Semiconductor + Condenser
• Working Time: 8+ hours continuously under -5°C
• Touchscreen: Built-in on each cryo handle + main console screen
• Noise Level: Reduced by 30% with Japanese vacuum pump
• Cooling Coverage: 100% full contact area

How to Use

Step 1: Clean the treatment area thoroughly and apply a protective membrane or gel pad.

Step 2: Select the appropriate cryo cup based on treatment zone. Connect it to the handpiece.

Step 3: Adjust temperature, pressure, and time using the main or built-in touchscreen.

Step 4: Place the handle on the area. Allow vacuum suction to stabilize the fat bulge inside the cup.

Step 5: Monitor during the 30–45 minute session. Adjust settings if necessary.

Step 6: After treatment, gently remove the handle and massage the area for 2–3 minutes.

Step 7: Use RF or laser pads optionally to enhance tightening and lymphatic flow.

Step 8: Clean equipment. Refill water or coolant as required for next use.

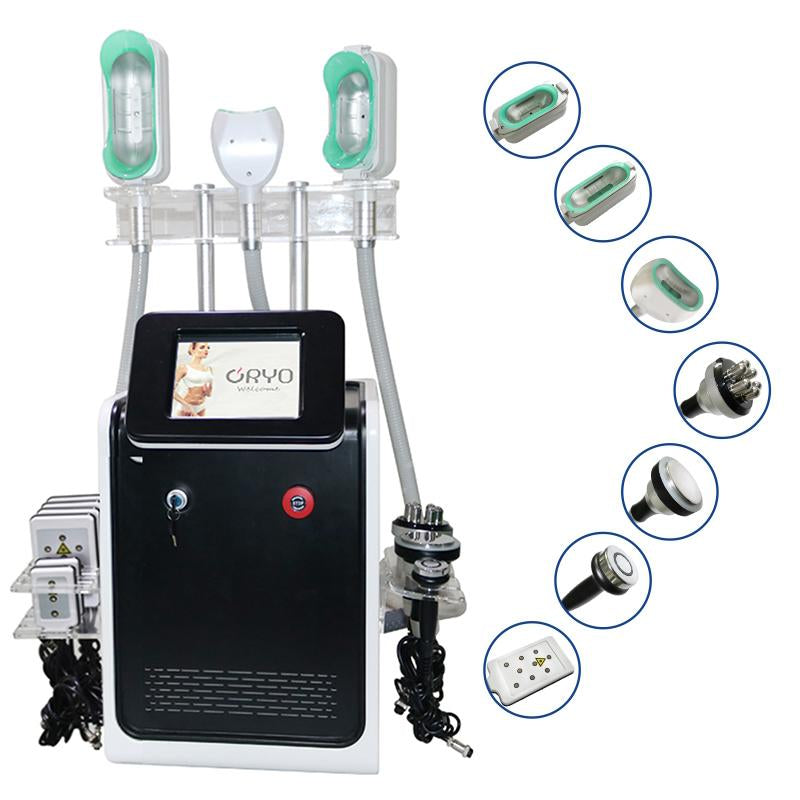

Packing List

• 1 × Main Freeze Sculpting Machine Console
• 2 × Large 360° Cryo Handles
• 1 × Mini Cryo Handle for Chin
• 7 × Interchangeable Cooling Cups (Various Sizes)
• 6 × Lipo Laser Pads with 42 Total Diodes
• 1 × Body RF Head
• 1 × Face RF Head
• 1 × 40K Cavitation Head
• 1 × Power Cable
• 1 × User Manual
• 1 × Water Funnel + Drain Hose
• 1 × Accessories Holder + Bandage
• 1 × Protective Shipping Carton

FAQs

1. What does the Freeze Sculpting Machine do?

It removes fat using cryolipolysis, RF, laser, and cavitation without surgery or downtime. It also tightens skin and reduces cellulite.

2. Is this machine safe for all skin types?

Yes, it is safe for all skin types. It monitors temperature and pressure in real time to ensure safety during treatments.

3. Can two areas be treated at once?

Yes. The two cryo handles can work simultaneously on different areas or clients to save time and cost.

4. Is the treatment painful?

No. The treatment is generally comfortable. Clients may feel suction and cooling initially but no lasting discomfort.

5. How soon can results be seen?

Most clients notice visible changes in 2–4 weeks. Full fat loss is usually achieved within 6–8 weeks.

6. Are the fat loss results permanent?

Yes. Once fat cells are destroyed and eliminated, they do not return. A healthy lifestyle helps maintain the results.

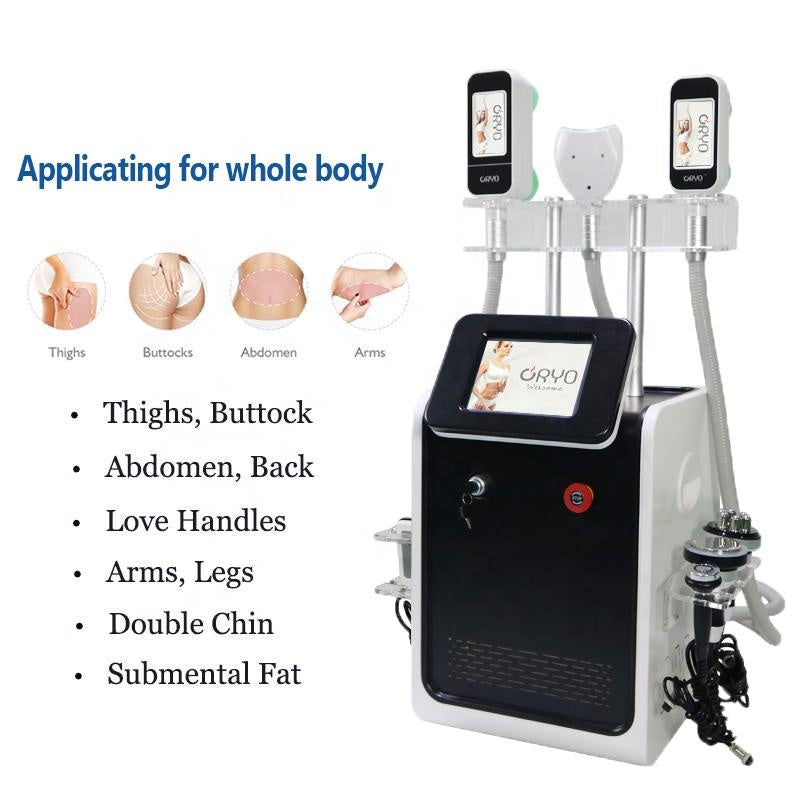

7. What areas can be treated?

Common treatment areas include chin, arms, belly, waist, back, buttocks, and thighs using the right handle sizes.

8. Is there downtime after a session?

No. Most clients resume their normal activities immediately after the treatment session.

9. Are there any side effects?

Mild redness, numbness, or swelling may occur temporarily and usually subsides within a few hours or days.

10. How many sessions are needed?

Typically 1–3 sessions per area, spaced a few weeks apart, depending on fat thickness and goals.
